Bimetallic thermometer TBf-220 IP54 100 OSH
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

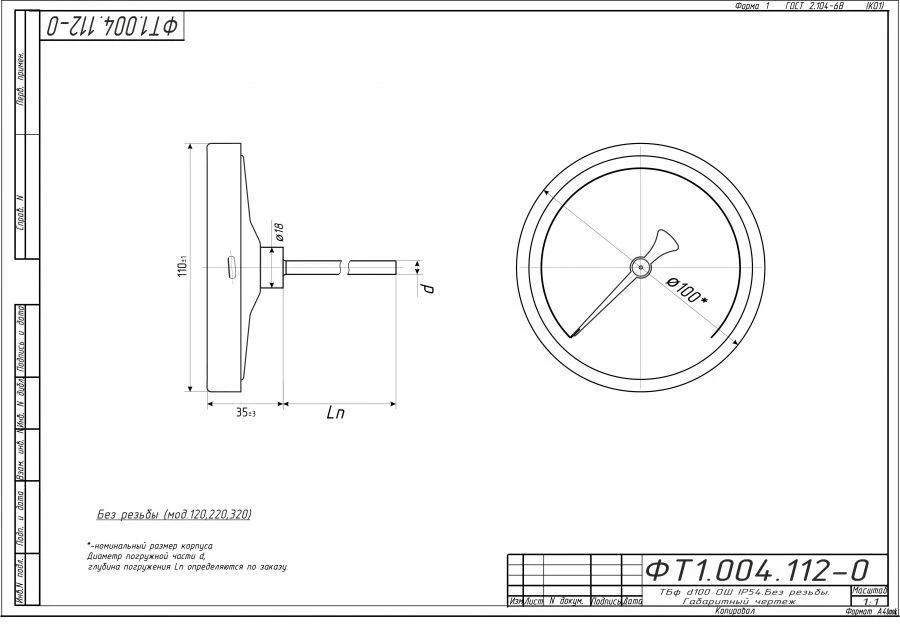

Thermometers bimetallic TBf are designed to measure the temperature of liquid and gaseous media, not aggressive to the material of protective sleeves or thermoballoon (in the absence of a protective sleeve), as well as the temperature of bulk and solids. The thermometers are manufactured with axial (Axial) location of the thermoballoon relative to the body. The thermometers can have a zero corrector located on the end of the thermoballoon or on the body. The design of the socket is threadless (sliding fit).
Thermometers can be referred to explosion-protected equipment of group II according to GOST 31441.1-2011 (EN 13463-1:2001), GOST 30852.0-2002 (IEC 6079-0:1998) and are intended for use in places (except underground mine workings and their above-ground structures) dangerous for explosive gas environments in accordance with the assigned explosion protection marking.
Thermometers can be referred to explosion-protected equipment of group II according to GOST 31441.1-2011 (EN 13463-1:2001), GOST 30852.0-2002 (IEC 6079-0:1998) and are intended for use in places (except underground mine workings and their above-ground structures) dangerous for explosive gas environments in accordance with the assigned explosion protection marking.
Specifications
Length of immersion part
1 mm
Accuracy class
2.5
Measuring limit, min
-60 °C
Measuring limit, max
600 °C
Measuring limit, max
600 °C
Measuring limit, min
-60 °C
Accuracy class
1
Body diameter
100 mm
Stem arrangement
axial
Availability of protective sleeves in the set
Armoured glass
Number of protective sleeves in the set
1 pc
Material of protective armature
Stainless steel
Insulation of the working end
airtight
Degree of protection
IP40; IP53; IP54; IP65
Type
TBf
Type of climatic version
UHL1
Unit designation
TBf-220 IP54 100 OSH
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
