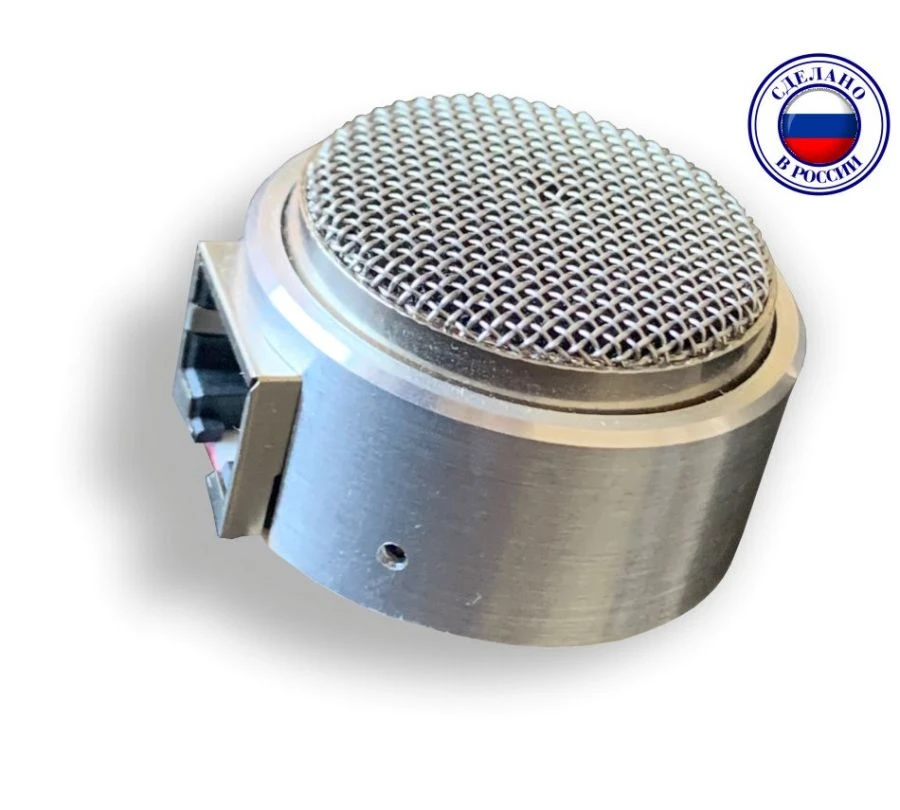

Bidirectional IP microphone OSA P1DL

Microphones and Stands

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

IP microphone OSA P1DL is designed to record conversations of two interlocutors sitting opposite each other. It can also be used to monitor the acoustic situation in the premises.Installed under the metal mesh special foam provides wind and noise protection of the received signal. This allows you to use this microphone in rooms with high noise levels.Microphone supports 3 sampling rates of 8, 16 and 32 kHz, which allows you to get the best sound quality and with a high degree of intelligibility. IP microphone can be used with speech analytics systems.When working on RTSP protocol, can transmit a video frame for compatibility with some models of video recorders.IP microphone is powered by RoE from the local network, or from RoE .Microphone can be used to build a system of audio recording over a local network on a computer (FTP server), connecting to the IP video surveillance system, or for audio monitoring of premises online.

Technical Specifications

Power consumption	1.5 W
Operating modes (selectable in the web interface)	Upload to FTP server: HTTP protocol
Differentiation of access rights	User - limited rights.
Firmware interface	Russian-speaking
Data provision	G711 u-law
Non-uniformity of the amplitude-frequency response	1.75...1.8
Sampling frequency	32
Nonlinear distortion factor	0.75...0.95 %
Bandwidth	0.5...20
Signal-to-noise ratio	75
Microphone sensitivity	-26
Directional diagram	Circular
Microphone capsule type	Two digital heads
Operating temperature range	-10...70 °C
Housing type	vandal-proof
Microphone dimensions	D= 34 mm, h= 18 mm (with grid)
Microphone power supply	Active PoE IEEE 802.3af and Passive RoE, 48-60V
Network interface	Ethernet 10/100Mbps, RJ-45 connector
Number of channels	1 pc
Firmware update	Via Internet in web-interface
Amplifying the signal at the microphone output	-12...12

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
