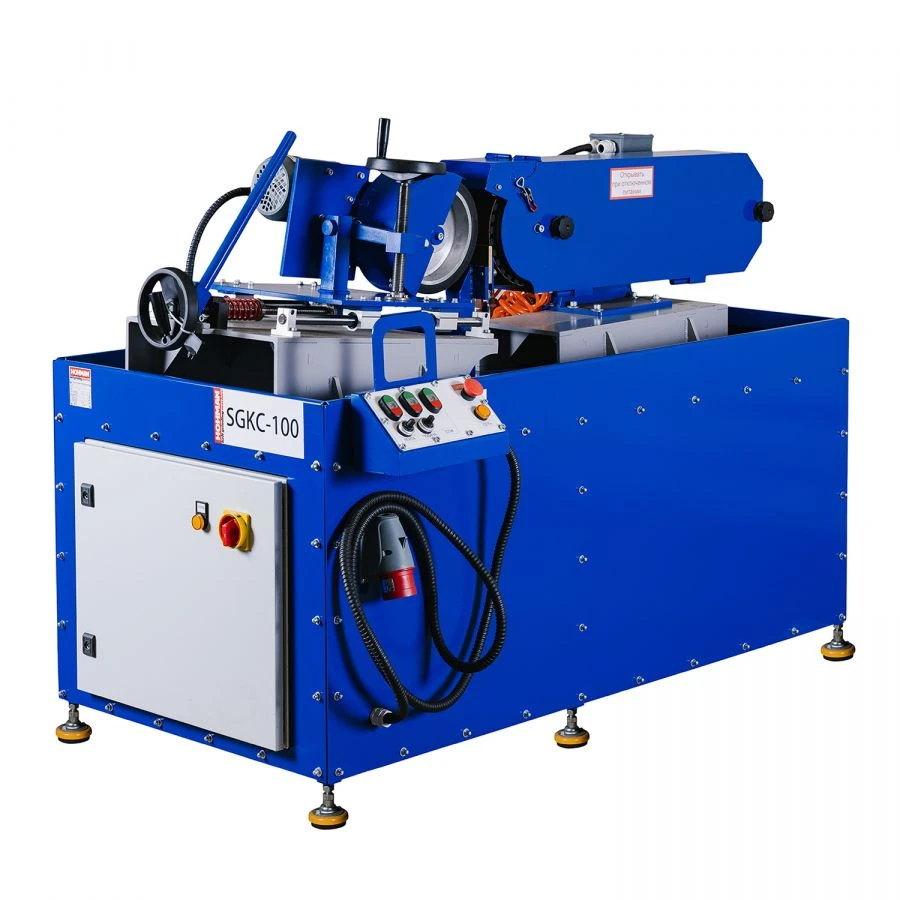

BELT GRINDING MACHINE SGKC-100

Metal Grinding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

GKS-100 belt grinding machine is designed for centreless grinding and polishing of round workpieces with diameter from 10 to 150 mm and length from 300 mm in the medium of coolant (lubricating and cooling liquid). The workpiece material can be aluminium and its alloys, copper-based non-ferrous metals, ferrous steels, stainless steels and other materials subjected to grinding with endless grinding belts. Surface roughness is achieved by using belts with different grits as well as Scotch-Brite polishing belts of all types. To achieve a mirror-like surface, it is necessary to use an abrasive-free belt with a polishing paste of the required grit. As grinding takes place in a coolant environment, the belt material and workpiece must be suitable for use in a coolant environment. The housing and main parts of the machine are made of steel and painted with high quality paint, which provides protection against environmental influences.

Specifications

Machine type cylindrical grinding

Materials to be processed Aluminum, copper, steel

Power 4.1 kW

Type of product according to PP RF 616 Grinding, polishing, finishing machines

Height 1300 mm

Width 1100 mm

Length 1900 mm

Endless belt size, width 100 mm

Endless belt size, length 2000 mm

Belt speed (adjustable) 5...30

Maximum workpiece weight 200 kg

Minimum/maximum amount of coolant in the tank 100 l

Machine weight (dry) 490 kg

Machine weight (filled) 590 kg

Diameter of the workpiece to be machined 10...150 mm

Minimum workpiece length 150 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
