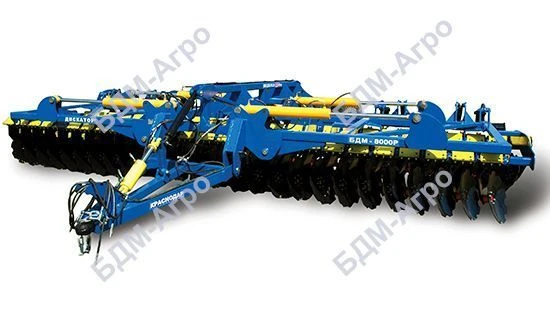

BDM-8000R DISCATOR

Disc harrow. Semi-trailed disc tillage implement with attachment of working elements to the frame through elastic elements. It consists of:
-three welded frames (centre frame, two wings), on which the working tools are mounted through elastic elements. The working element is a stand, bearing unit and spherical disc, which is directly the working element that cultivates the soil.
- lifting sections
- trailed implement.
- hydroficated chassis.
The implement has two rows of working elements.
For levelling the cultivated soil, a double U-shaped roller is attached to the frame at the rear. The depth of cultivation can be adjusted by means of the roller. The working width is 7.6m.
