Available for Import
BD 6,0x2PG disc harrow with roller
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

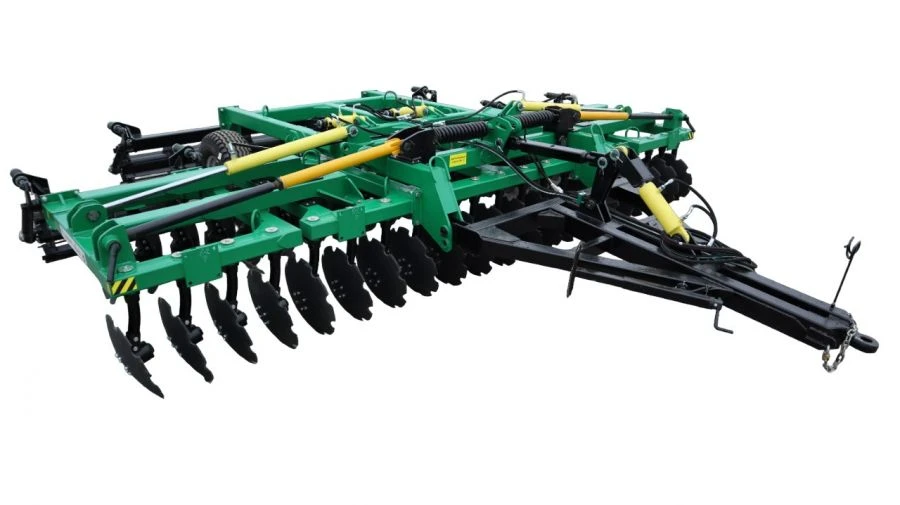

Disc harrow BD 6,0x2PG with roller
Frame made of 150x100x6 profile pipe, support beams - 150x100x8 mm.
Distance between the posts 280 mm, between the rows 1350 mm
Daisy disc 560x5 mm
Lubricated stand with diameter 58,5 mm
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 25x25 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Spring loaded roller support
Unique in Russia system of wing clamping (copying the relief of the soil)
Frame made of 150x100x6 profile pipe, support beams - 150x100x8 mm.
Distance between the posts 280 mm, between the rows 1350 mm
Daisy disc 560x5 mm
Lubricated stand with diameter 58,5 mm
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 25x25 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Spring loaded roller support
Unique in Russia system of wing clamping (copying the relief of the soil)
Specifications
Type of product according to PP RF 616
Disc harrows
Distance between rows
1350 mm
Weight
4530 kg
Number of implement rows
2 pc
Material of working elements
Metal, 65G steel
Material of frame structures
Metal, steel 09G2S, st3
Harrow type
Disk-type, on separate racks
Working width
5.9 m
Height
1200 mm
Width
6100 mm
Length
5900 mm
Operating speed
8...12
Capacity per hour
7
Number of working orans
42 pc
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
