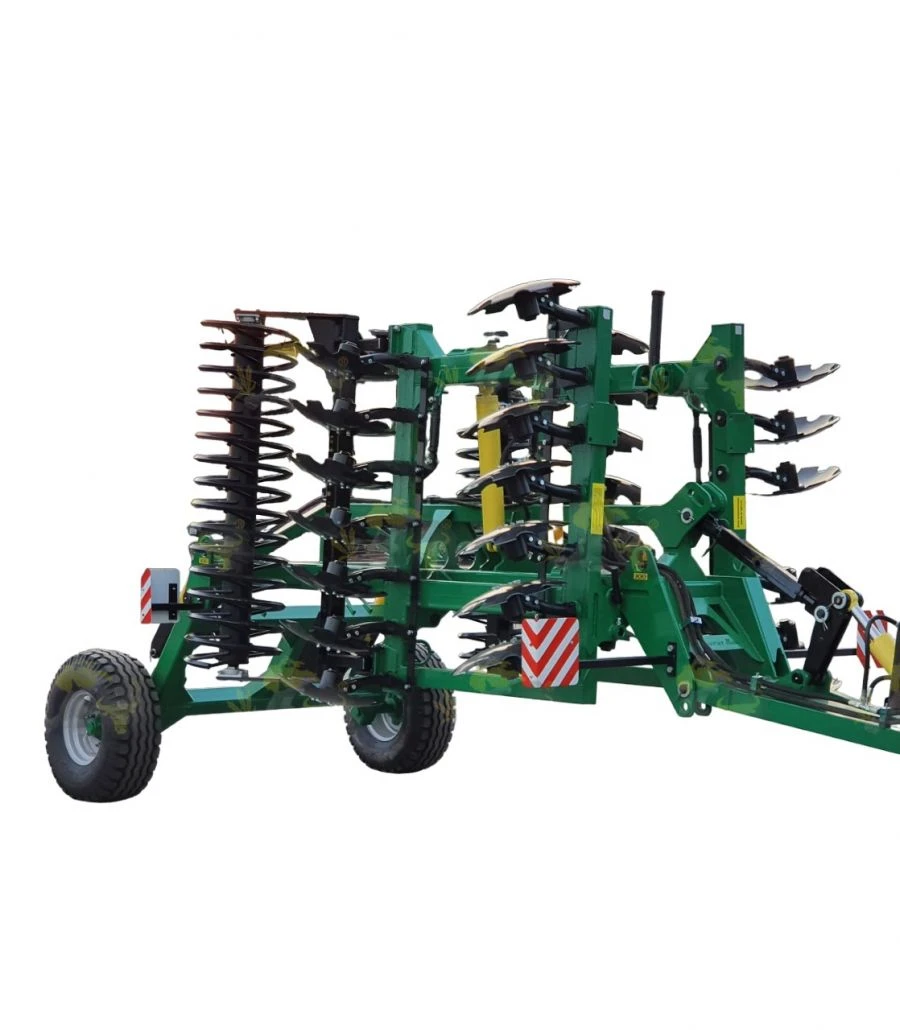

BD 4x2PB Disc Harrow with Roller for Effective Soil Preparation
Manufacturer:
RADOGOST-MASH LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Disc harrow BD 4x2PB with roller
Butterfly" folding disc harrow
Frame made of 150x100x6 profile pipe, support beams - 150x100x8 mm.
Distance between the posts 300 mm, between the rows 1050 mm
Daisy disc 560x6 mm
Lubricated stand 58,5 mm in diameter
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 25x25 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Spring loaded roller support
Unique in Russia system of wing clamping (copying the relief of the soil)
Butterfly" folding disc harrow
Frame made of 150x100x6 profile pipe, support beams - 150x100x8 mm.
Distance between the posts 300 mm, between the rows 1050 mm
Daisy disc 560x6 mm
Lubricated stand 58,5 mm in diameter
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 25x25 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Spring loaded roller support
Unique in Russia system of wing clamping (copying the relief of the soil)
Specifications
Type of product according to PP RF 616
Disc harrows
Distance between rows
1350 mm
Weight
3800 kg
Number of implement rows
2 pcs
Material of working elements
Metal, 65G steel
Material of frame structures
Metal, steel 09G2S, st3
Harrow type
Disk-type, on separate racks
Working width
4 m
Height
1600 mm
Width
4100 mm
Length
6500 mm
Operating speed
8...12
Capacity per hour
4.8
Number of working orans
28 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
