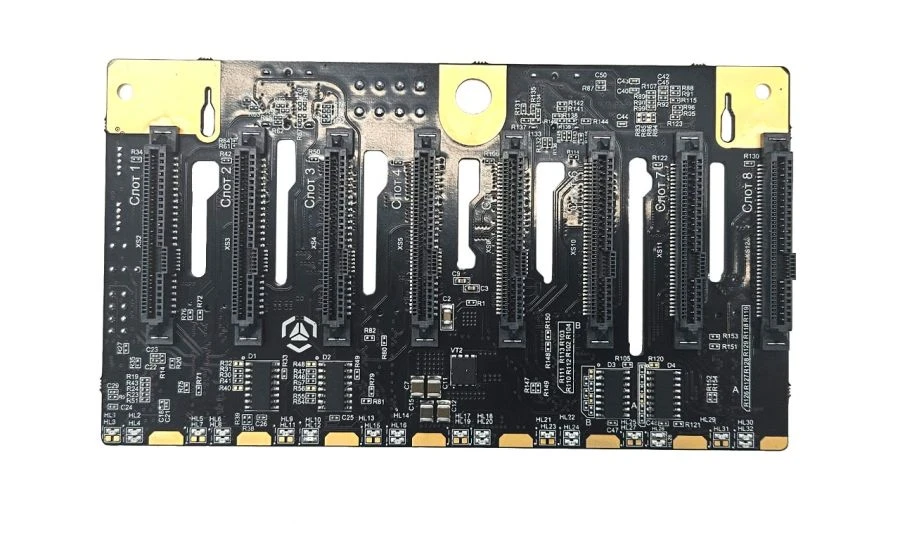

BCP-8S8N-2RU01 Backplane for Connecting Up to 8 Drives

Available for Import

BCP-8S8N-2RU01 Backplane for High-Speed Data Transfer from 8 Drives

Mounted Circuit Boards

Manufacturer:REVOTECH LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Backplane BCP-8S8N-2RU01 is designed to connect up to 8 drives and transfer data from them to the disc controller using SATA 3.2; SAS-3;NVMe (PCIe 4.0)

Specifications

Power consumption of the backplane (without taking into account the consumption of storage devices), not more than

7 W

Output currents for each storage device at power-up (for 8 seconds)

1.5 A on +5 V line; 2.4 A on +12 V line

Rated supply voltage

B1/B8 2100/900 MHz V

Power supply connector

Type ATX, eight-pin

Functional connectors

JP1, eight-pin, for switching display modes; JP2, three-pin, for selecting signal source

U.2 drive connectors:

8 x SFF-8639

Cable connectors

2 x SFF-8643 (mini-SAS HD); 4 x SFF-8654 (SlimLine SAS)
