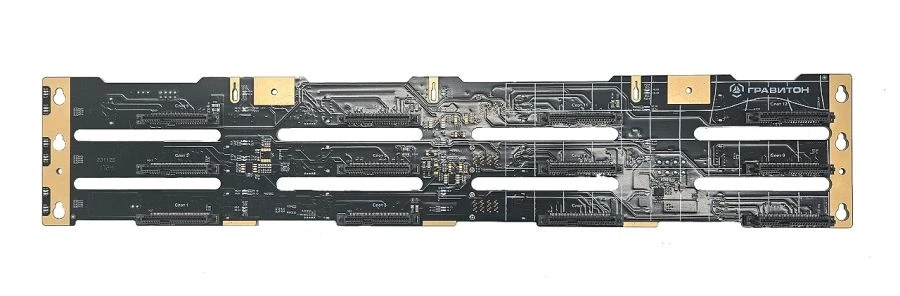

BCP-12S12N-2RU02 Backplane for 12 Drives Connectivity

Available for Import

BCP-12S12N-2RU02 Backplane for Connecting 12 Drives to Data Controllers

Mounted Circuit Boards

Manufacturer: REVOTECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Backplane BCP-12S12N-2RU02 is designed to connect up to 12 drives and transfer data from them to the disc controller using SATA 3.2; SAS-3;NVMe (PCIe 3.0)

Specifications

Power consumption of the backplane (without taking into account the consumption of storage devices), not more than

10 W

Cable connectors

3 x SFF-8643 (mini-SAS HD); 12 x SFF-8612 (OCuLink)

U.2 drive connectors:

12 x SFF-8639

Functional connectors

JP1, eight-pin, for switching display modes; JP2, three-pin, for selecting signal source

Power supply connector

Type ATX, eight-pin

Rated supply voltage

B1/B8 2100/900 MHz V

Output currents for each storage device at power-up (for 8 seconds)

1.5 A on +5 V line; 2.4 A on +12 V line
