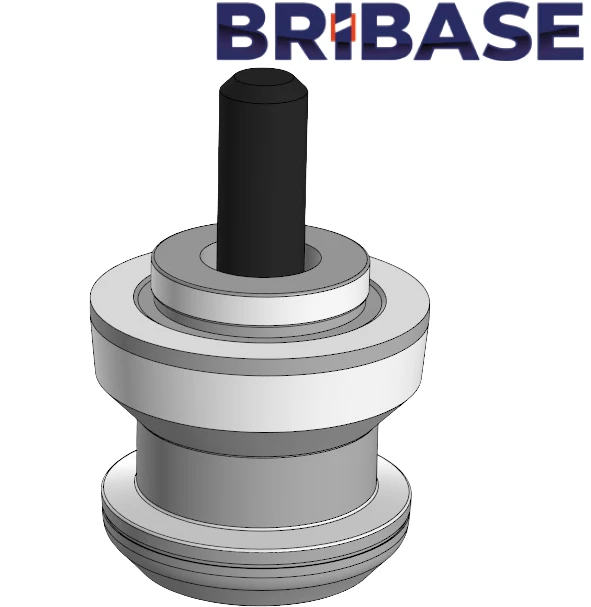

BB.ZP.140.11.012 Fitting pin ZPA-12 (centring type A) BriBase

Setting pin type A is designed for fixing the tooling in the basing device. The Type A pin centres and orientates the workpiece to be clamped. The Type A locating pin is used alone and in conjunction with the Type B and Type C locating pins. The seating surface of the Type A pin is a ground conical surface. The diameter of the pin is 39.3 mm. Length 39,5 mm. The seating diameter is 25h4 mm. Length of the seating area 5.0 mm. Fixing threaded hole M12. Internal hexagon size 10 mm. Made of high-strength hardened steel.
