Battery-type condenser blasting machine KBPM-5 (Arena-5)

Specialized Electric Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

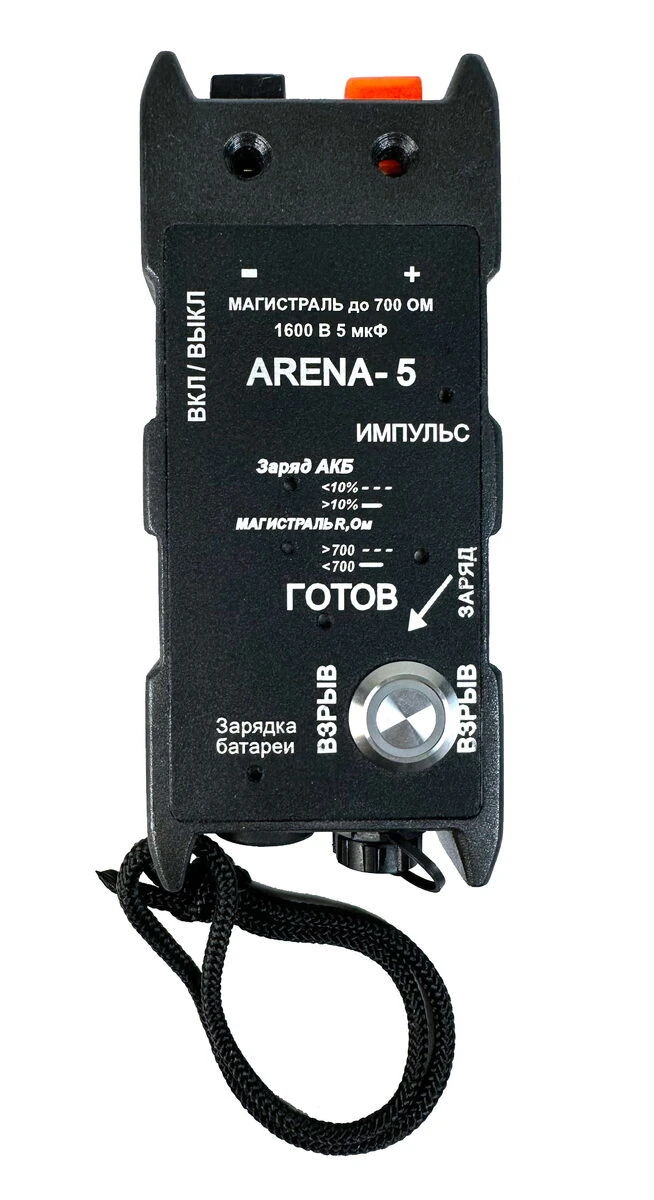

Capacitor battery blasting machine KBPM-5 (Arena-5) is a portable source of electric current of high voltage, designed for initiation of electric detonators (ED) and electric igniters of EDP, EDP-r and other types having similar characteristics in the production of explosive works by electric means, by supplying them with voltage and current sufficient to heat platinum-iridium or nichrome bridge to the flash point of the ignition composition. The main purpose of the "ARENA-5" model is to be used during blasting operations when clearing the area of explosives, blasting operations in coal mines, tunnel construction

Technical Specifications

Rated terminal voltage	1600 V
Capacity of working capacitor	5 µF
Operating capacity charge time	Not more than 6 sec
Limit resistance at connection	700 ohm
Maximum number of connected motors, electric motors in case of series connection	250 pc
Maximum number of connected EDs, EVs in parallel connection	5 pc
Number of blasts from one battery charge, under normal conditions	At least 1000
Battery type	18650, Li-Ion, 3.7V, removable
Dimensions (WDR)	165x70x30
Degree of protection	IP65
Weight	450 g
Operating temperature range	-40? ... +60?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
