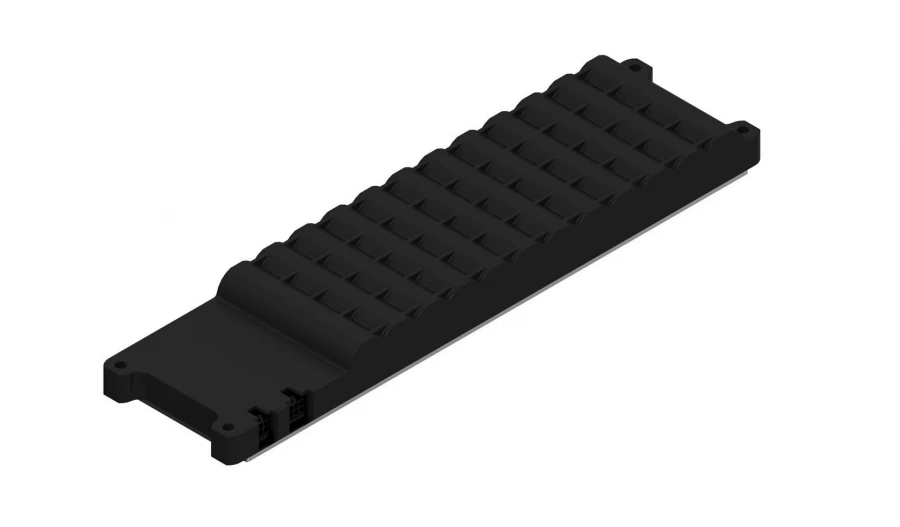

Battery rechargeable AIP 14-145-A Li-ion TRLE.563561.002
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The AIP is equipped with a life cycle management system (LCMS) performing the following functions:
Protection from deep discharge of cells and, on the contrary, from charging them too much.
Cell balancing, and protection against excessive unbalancing in extreme operating conditions.
Battery protection against cell overheating, protection against output short-circuits.
Charging of the battery from DC voltage by the inbuilt battery charger.
Indication of the current charge level is available via SMBus interface using SBS v1.1 protocol.
Saving of alarm events, as well as recording of all key events and extreme states of the main parameters in non-volatile memory, for subsequent analysis (built-in on-board recorder)..
Technical Specifications
| View | Power supply |
|---|---|
| Discharge current | 9 A |
| Technology | Connection to AIP is made by means of connectors: f.Molex 430450400 ( X1) , 430250400 - mating part; f.Molex 430450600 ( X2) , 430250600 - mating part. |
| Battery type | lithium-ion |
| Weight | 0.87 kg |
| Type | autonomous |
| Rated output voltage | 14.4 V |
| Rated charging current | 3 A |
| Capacity | 145 |
| Size | Overall dimensions, mm*mm*mm - 305 * 75,5 * 26 |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
