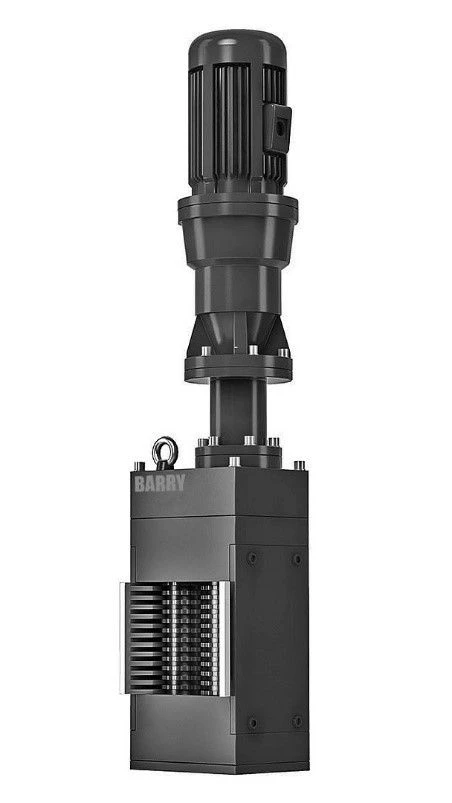

BARRY010X series waste water shredder

The present technical specifications apply to wastewater shredders of BARRY010X series (hereinafter - shredders, equipment, installations).
Shredders are designed for wastewater treatment, in pumping stations of internal drainage and other water channels (wells), and serve for interception and shredding of solid suspended particles and debris.
Capacity, m3/h from 80 to 480 cubic metres per hour;
without drum;
Characteristics of wastewater coming for treatment according to GOST 25298
Working pressure in the pipeline, kgf/cm2, not more than 6,0
Angle of installation of cutting blocks 0º
Power supply voltage, V 380 (three-phase)
Rated current frequency, Hz 50
Time of readiness to work after switching on, min., not more than 5
Weight, kg from 218 to 356
Shredding degree, mm, not more than 10
Number of operating personnel, persons 1
Degree of protection according to GOST 14254, not lower than IP54
Shredders consist of the following main units:
- shredder;
- control cabinet.
