Available for Import

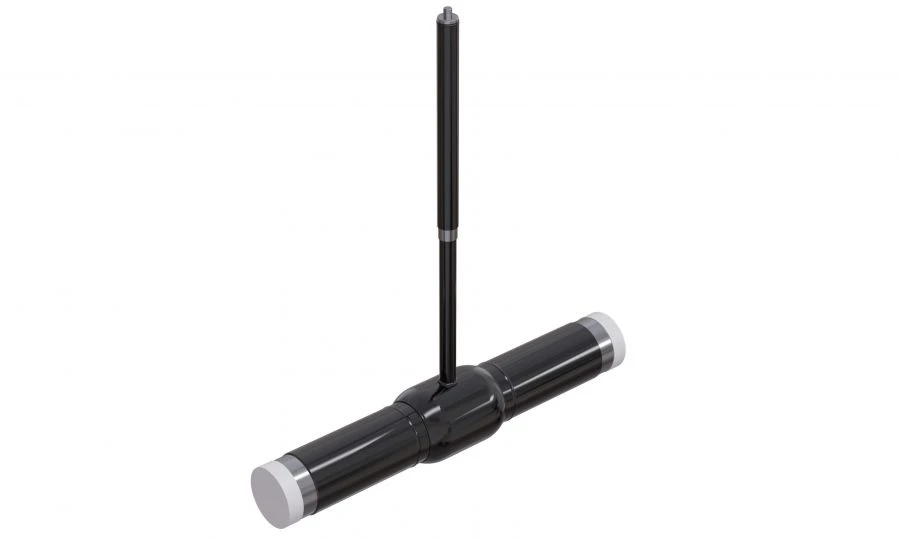

Ball valve ALSO stainless steel welded full bore with extended telescopic stem (under insulation) KSH.P.P.T.040.

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Ball valve ALSO stainless steel welded reduced with extended telescopic stem (under insulation) ??.?.?.125.25 Stainless steel welded ALSO ball valve reduced with extended telescopic stem (under insulation) KSH.P.T.200.25 Ball valve ALSO stainless steel welded ball valve reduced with an extended telescopic stem (under insulation) KSH.P.T.040.40 Ball valve ALSO stainless steel welded reduced ball valve with extended telescopic stem (under insulation) ??.?.?.050.40 Ball valve ALSO stainless steel welded ball valve reduced with extended telescopic stem (under insulation) KSH.P.T.065.25

Description

ALSO stainless steel ball valves of universal series with all-welded body are designed for water external and internal heating networks at a carrier temperature up to 200 ° C, including water in the circuits of heating networks in accordance with the requirements of PTE "Requirements for the quality of network water".
They are also used for installation on pipelines and structures on them, transporting non-aggressive natural gas, liquefied hydrocarbons, petroleum products and other liquid and gaseous media, in relation to which the valve materials are corrosion-resistant.
Stem height is fulfilled upon customer's request in accordance with technical capabilities of the manufacturing plant. It is also possible to execute in UHT insulation.

Specifications

Nominal diameter DN (DN) 40

Nominal pressure PN (Ru) 4 MPa

Material Steel

Steel grade 12CR18NI10T

Connection type Welded

Shutter type Char

nominal passage complete

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
