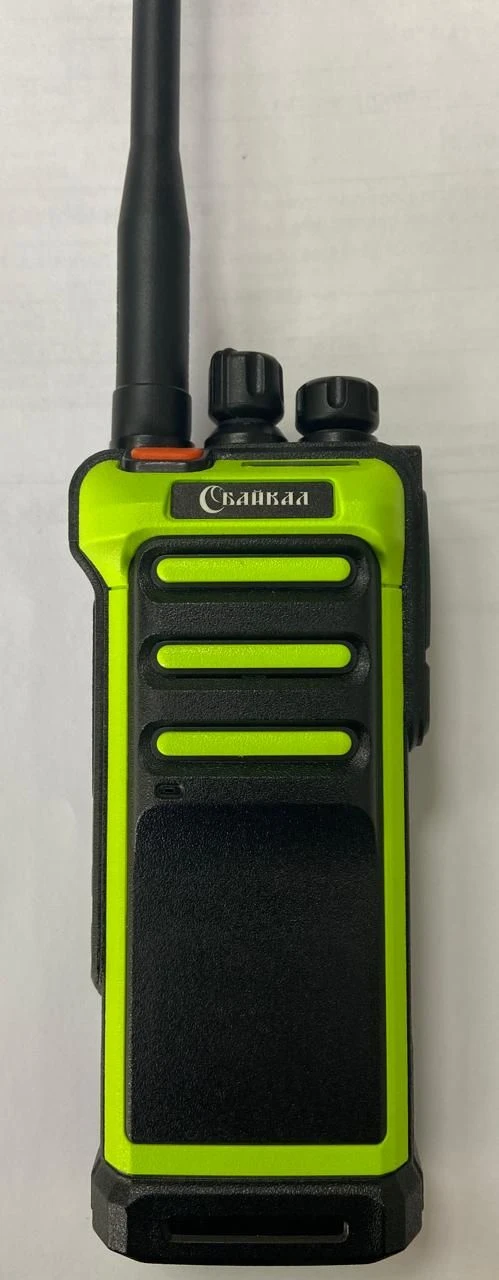

Baikal-701C portable radio station

Radio Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Baikal-700 portable analogue radio station

Description

Baikal-701 Ts is a wearable radio station designed to provide support for one or more radio channels used by subscriber radios within one service area.
Modes of operation of the radio station - analogue; digital
DMR communication standard
Frequency range, MHz 146-174/400-470
Number of channels, pcs. - 32
Frequency grid pitch in analogue mode, (programmable), kHz - 12.5/25
Receiver sensitivity at signal-to-noise ratio at 12 dB SINAD, µV - 0.25
Transmitter output power (programmable), W - 10 W
Suppression of out-of-band emissions, dB, not less than 65
Rated output sound power at a load of 16 Ohm, mW - 1000
Supply voltage, V - 7,4
Limit deviation of supply voltage, % ± 20
IP protection degree - IP57
Battery type - Li-Ion
Battery capacity, mAh - 3000
Charger supply voltage, V - 100-240
Frequency of the network for connection of the charger, Hz - 50-60
Overall dimensions (L×Sh×G), mm - 160×65×45
Weight (without accum...)

Specifications

Communication modes analog; digital

Service life 3 a

Average MTBF 5000

Number of analog channels 32 pc

Power 10 W

Digital Standard DMR

Conference call Got it

Type Portable radio station

Equipment Radio, antenna, battery, packing, instruction manual

Height 160 mm

Width 65 mm

Station capacity, mAh 3000

Battery type Li-Ion

communication range 5

Overall dimensions 160×65×45 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
