B2scan DD-S MOBILE CAR BORDERWATCH SYSTEM

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
The system of inspection of the bottoms of vehicles is designed to inspect the bottom of a wide range of vehicles and allows you to quickly and accurately identify hidden and prohibited to import items that may be hidden under the vehicle. The product significantly reduces the time of inspection procedures and saves human resources. It is designed to provide the operator with a full, clear, colour image of the bottoms of passing vehicles in order to detect foreign objects (weapons, explosives and explosive devices, ammunition, narcotics, poisonous and potent poisonous substances, equipment for unauthorised data capture (bugs), audio-video recording devices, etc.) that are not an integral part of the vehicle and deliberately installed on the bottom, in the chassis cavities and other places.

Technical Specifications

Overall dimensions of the electrical enclosure 600(L) x 300(W) x 1000(H) mm
Overall dimensions of the operator workstation 800(L) x 750(W) x 1430(H) mm

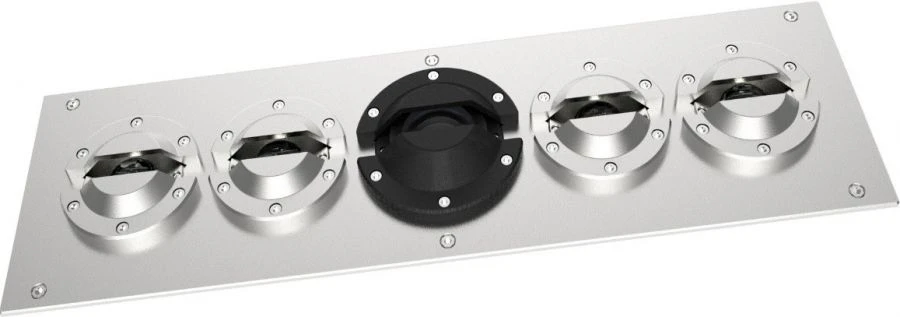

Overall dimensions of the stationary underbody scanner camera 1200(L) x 350(W) x 210(H) mm
Housing material of the stationary vehicle underbody scanner camera high-strength aircraft aluminum
Moisture protection class of the stationary underbody scanner camera housing IP68
Permissible load on the floor chamber housing Up to 50,000 kg
Infrared illumination LEDs, number 4 pcs.
LED backlight luminous flux 6000 lumens
Effective viewing angle 175?
Monitor 21.5" diagonal, 1920x1080 resolution
Number of reproducible colors 16.7 million
Hard disk storage capacity 1 000 GB
Image Archive Not less than 200,000 pieces
Power supply 220V AC (-15% ~ +10%), 50Hz / 60Hz ± 3Hz
Maximum power consumption 1200 W
Operating temperature range of the stationary underbody scanner camera -40°C ~ +60°C
Storage temperature / humidity -40°C ~ +75°C / 5% ~ 95% non-condensing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
