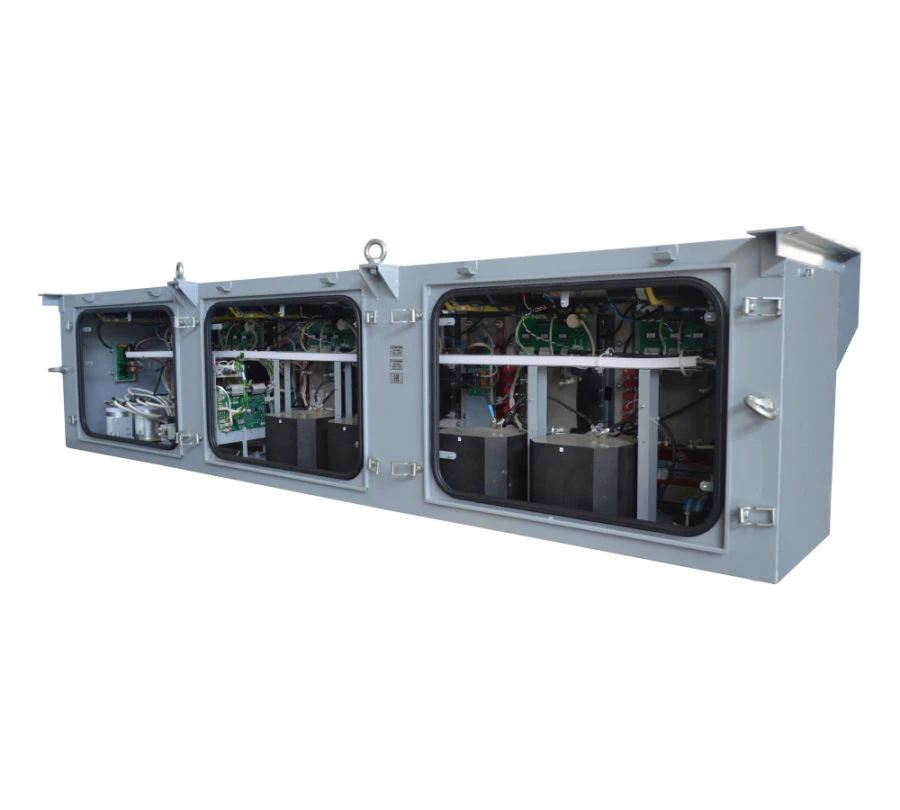

Auxiliary converter PSN-200-U1

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

PSN-200-U1 for electric trains of intracity and suburban traffic EG2TV "Ivolga 1.0" and "Ivolga 2.0" produced by JSC "Tverskoy Carriage Works" is designed to convert the direct current of the contact network with nominal voltage of 3000 V into alternating three-phase current with nominal voltage of 380 V with frequency of 50 Hz and into direct current with nominal voltage of 110 V to power asynchronous motors of electric drives of air conditioning units, compressors and other loads. PSN-200-U1 at parking can convert the external AC network 3 x 380 V 50 Hz into direct current with nominal voltage of 110 V to supply the control system, lighting and battery charging. PSN-200-U1 is made in the form of two power converters placed in the undercarriage space and includes a high-voltage part and a low-voltage part. There are 160 units in operation.

Specifications

Overall dimensions of NSP (DxWxH) 2150*722*730 mm

Overall dimensions of the VSP (DxWxH) 3200*747*726 mm

Input nominal supply voltage Contact voltage 3000V dc network

Rated output line voltage (Channel 1) 380 V

Line voltage variation range (Channel 1) +6, -3 %

Number of phases (Channel 1) 3 pc

Nominal frequency (Channel 1) SBVVBG

Frequency deviation (Channel 1) 1 %

Type of load (Channel 1) Active-inductive

Rated output power (Channel 1) 150 kW

Maximum power output (Channel 1) 175 kW

Output nominal voltage (Channel 2) 110 V

Output voltage ripple factor (Channel 2) 6 %

Maximum power output (Channel 2) 15 kW

Output voltage variation range (Channel 2) 77...142 V

Total efficiency in nominal mode (Channel 2) Flat grinder, Specialised grinder %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
