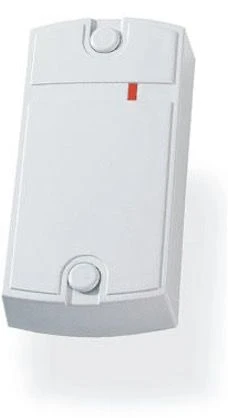

Autonomous Access Control Controller with Built-in EM-Marine Reader, Matrix-II (mod. E K)

Available for Import

Autonomous Access Control Controller with EM-Marine Reader for Secure Access Management

Low-Voltage Electrical Panels

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Combines all the features of the reader and controller in one housing, and is designed for use in access control and management systems (ACS) to control electromagnetic and electromechanical locks using proximity cards EM-Marine standard.

Specifications

Operating frequency

125

Operation with cards (keyfobs), standard

EM-Marine

Reading range

6...8 cm

External reader connection protocol

IButton (Dallas Touch Memory)

Number of keys/cards (max)

1364 pcs

Key support 1996

Armoured glass

Sound/light indication

Buzzer, LED

External LED and external buzzer control

Armoured glass

Output for lock connection

TIR transistor

Switching current (24V /120V AC)

5 A

Jumper for selecting the lock type

Electromagnetic, electromechanical

Setting the duration of lock opening

0...220

DC supply voltage

8...18 V

Current consumption

45 mA

Dimensions

85x44x18 mm

Case material for "Z-5R (mod. Case)"

ABS plastic

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
