Automobile gas-filling compressor station AGNKS-100-0,3/1,2-1/1-2-2-2-U1

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

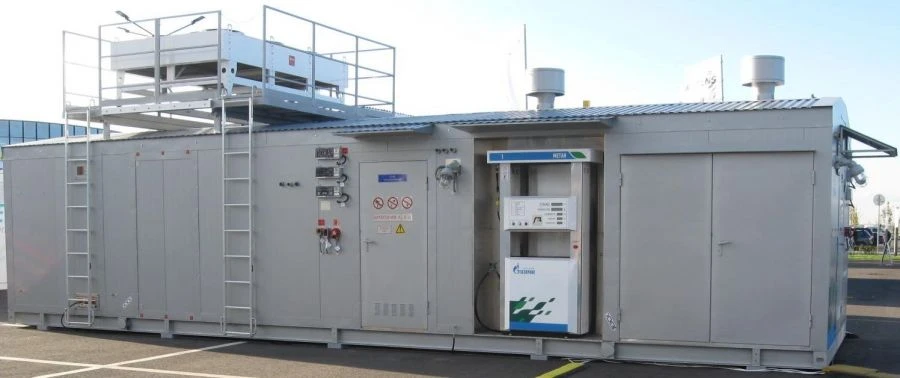

Automobile gas filling compressor station AGNKS-100-0,3/1,2-1/1-2-2-2-U1 (hereinafter referred to as AGNKS-100, station) zI.2.963.500 - is designed to measure the gas flow rate coming from the gas pipeline, compress natural gas (hereinafter referred to as CNG) to the quality of gas motor fuel, accumulate CNG into accumulator blocks and mobile gas refuelling trucks, unload CNG accumulator blocks and dispense CNG through the network of filling stations to the consumer. CNG filling station-100 is a facility where natural gas coming from the main gas pipeline is subjected to complex processing. Type of climatic execution - U1 according to GOST 15150-69.
Composition of CNG filling station-100: 1) block of inlet cocks with commercial gas metering unit with installed shut-off, regulating and safety valves, gas purification system from mechanical impurities and dripping moisture, as well as with a device for measuring the flow rate of gas coming to CNG filling station-100; 2) compressor block with cooling system based on the installation of ... .

Technical Specifications

Weight, not more	28000 kg
Service life, at least	30 a
Voltage	380 V
Maximum number of refuelling per day	100 pc
Inlet gas pressure	0.3...1.2 MPa
Inlet gas temperature	-10...60 °C
Output pressure for fuelling of motor vehicles	19.6 MPa
Input pressure for PAGS fuelling	24.5 MPa
Steady state range	1...100 %
Number of refuelling stations	2 pc
Filling circuit	double line
Volume of gas accumulator block (physical)	2000 l
Designated life, not less than	20000
Total power consumption	98 kW
Operating temperature range	-60...50 °C
Length	12000 mm
Width	3600 mm
Height	3000 mm
Dimensions (DxWxH), mm	12000x3600x3000
Operating temperature	-60...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
