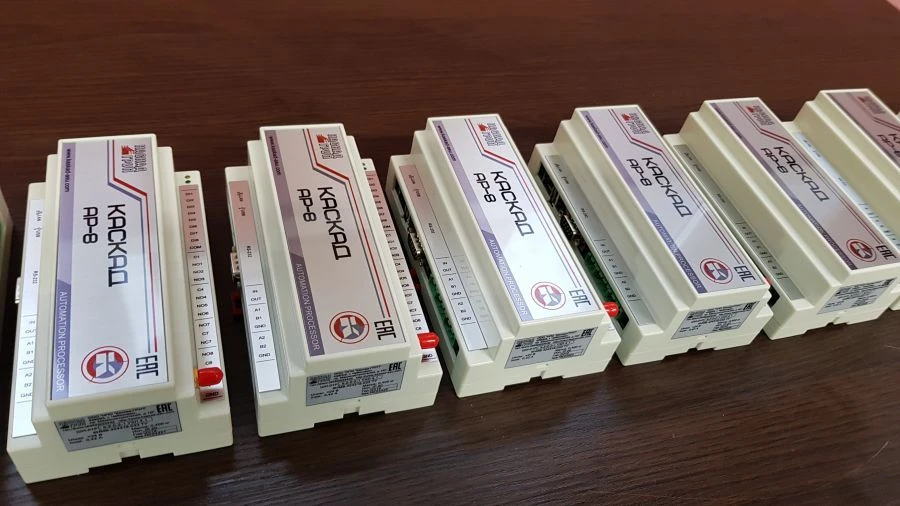

Automation Processor KASKAD AP-8 for Efficient Process Management

Electronic ICs

Manufacturer: CASCADE-GROUP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The KASKAD AP-8 automation processor (hereinafter referred to as AP-8), which is designed for building automated control systems for technological processes of various complexity. As part of large distributed automated systems AP-8 serves for data collection from devices of different types by different communication protocols into a single information system and/or data transmission to adjacent and superior systems by standard protocols. Built-in support of programming languages according to GOST R IEC 61131-3 standard allows to implement process control algorithms of any complexity. When building small automated systems AR-8 can be used without SCADA-system. Realisation of the process control and management process by the built-in web-server makes it possible to build stable distributed systems capable of operating autonomously in case of communication loss. To perform the function realised by the AR-8, microprocessor-based equipment is used under the control of an embedded o...

Specifications

Type of product according to PP RF 616

Integrated electronic circuits

Rated supply voltage

24 V

Supported output protocols

IEC 60870-5-104, Modbus RTU/TCP, OPC DA/HDA

Supported input protocols

IEC 60870-5-101/103/104, Modbus RTU/ASCII/TCP, specialised ODR polling protocols

Channels for power control of external equipment

1 pcs

Discrete output channels

8 pcs

Discrete input channels

8 pcs

Rated processor clock frequency

480

Supported Operating System

Linux

RAM capacity

512

Non-volatile memory capacity

RS/EIA-232 standard wired link

1 pcs

RS/EIA-485 wire link

2 pcs

IEEE 802.3 Ethernet wired communication link

1 pcs

Universal Serial Bus (USB) standard wired link

2 pcs

High Definition Multimedia Interface (HDMI) wired communication link

1 pcs

Wireless GSM and GPRS communication channel

1 pcs

LPD433 wireless communication channel

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
