Automatic voice announcement system scoreboard control controller RECOR KUT

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided

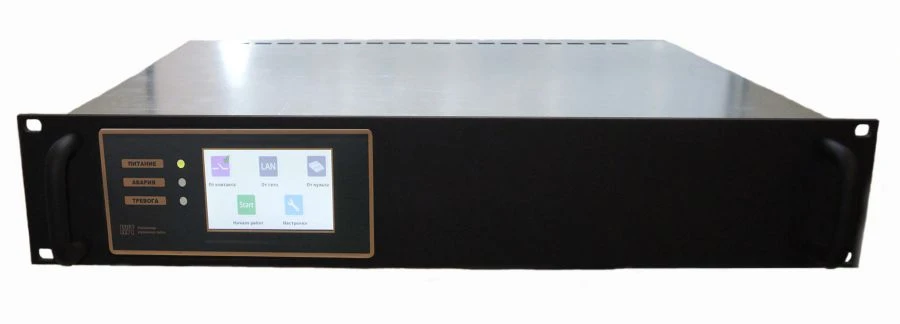

The KUT scoreboard control controller in accordance with the classification according to GOST R 53325-2012 is a Fire Control Device (FCD) and is designed (together with addressable devices KP-T scoreboard connection box) for use as an integral part of Type 5 fire alarm systems. KUT provides dynamic control of evacuation flows in case of fire: - monitoring of activation inputs for the presence of triggering; - upon detection of triggering on the activation input, KUT, in accordance with the alarm scenario stored in the memory, carries out the formation and issuance of commands to addressable warning devices (such as KP-T or "Running Line"); - monitoring of addressable devices for failures and malfunctions; - formation of information service messages accompanying the operation of the device.

Technical Specifications

Assignment Dynamic control of fire evacuation flows in type 5 fire alarm systems.
Number of scoreboard addresses, max Polyvinyl chloride plasticate, halogen-free composition pc
Number of communication lines to be connected 4 pc
Maximum line length 1000 m
Control protocol Modbus
Power consumption from 220V source (without taking into account consumption by communication lines), not more than NZ-150-14,5 W
Rated voltage in the power supply line of addressable devices NZ-150-14,5 V
Limit load per power line 60 V
Voltage supply from AC mains ~220 V, (-15%, +10%,) 50Hz
Unit dimensions (H x W x D) 90 x 490 x 430 mm
Weight of the unit without packing, not more 10 kg
Mounting type 19" rack or desktop mounting
Mode of operation Round-the-clock
Operating temperature 0 °C to +40 °C
Relative humidity ? 93 % at 40°C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
