Automatic voice announcement system "RECOR": central control unit CBU-160/2

Security and Fire Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

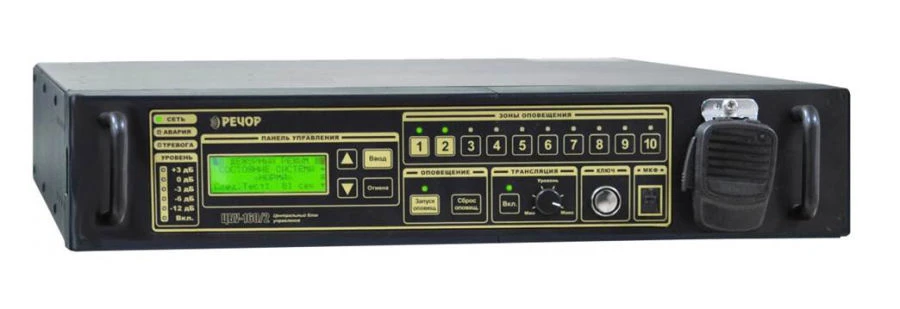

Central control unit TsBU-160/2 is a firefighting device for the control of voice alarm systems "RECOR". TsBU-160/2 receives control signals generated by the automatic fire alarm system, and turns on the system of warning and evacuation control (SOUE) of 3 and 4 types.

Technical Specifications

AC mains supply voltage, B	~220 + 10%, -15%, 50 Hz
Maximum power consumption from the mains ~220V	212
Power consumption in standby mode from the network ~220V, not more	10
DC backup power supply voltage, V	30/42
Rated voltage of the backup power supply	NZ-150-14,5 V
Current consumed from standby power supply in standby mode, not more	0.2 A
Maximum current consumption from standby power supply \|A\|: 5	5 A
Rated output voltage of audio frequency amplifier	100 V
Integrity monitoring of warning lines	By method of comparing the continuously measured resistance of the alarm line in standby mode with the resistance of the line at the time of installation
Intelligent redistribution of backup power supply resource to priority warning channels	Armoured glass
Frequency response of amplifier, at 3 dB non-uniformity, Hz	70/20000
Nonlinear distortion at rated output power, %	Less than or equal to 1
Input impedance of broadcast line input	600 ohm
Sensitivity of the line input of the GO, mV	200
Number of control inputs "Alarm"	10 pc
Activation of control inputs	"Dry contact."
Number of possible alarm scenarios	5 pc
Maximum switching voltage of "Dry contacts" relay	240 V
Maximum switching current of "Dry contacts" relay	5 A
Maximum voltage on the terminals "Power supply. CB. TABLO"	240 V
Maximum current in "TABLO" circuit	5 A
Maximum load of the alerting line of the duty personnel	10 W
Maximum total load of notification lines "LIN.1" and "LIN.2"	160 W
Maximum duration of message recorded on SD memory card limited only by card capacity	30
Ability to create a copy of the current system configuration	Armoured glass
Dimensions of blocks (H x W x D), not more, mm	90x490x430
Weight of the unit without packing, not more	10 kg
Mounting type	Desktop or 19" rack mounting
Mode of operation	Round-the-clock
Operating temperature	0...40 °C
Relative humidity at 40 C, not less than 40 C	93 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
