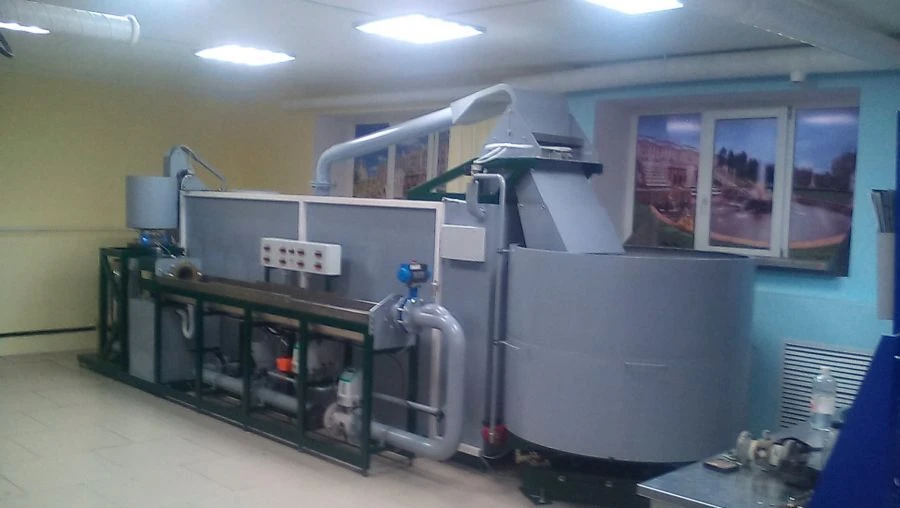

Automatic verification unit UPRS-200/2

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Purpose: for measuring, reproducing, storing and transferring units of mass and/or volume of liquid in the flow, mass and/or volume flow rate of liquid. The working liquid is water. The principle of operation of the unit is volumetric-mass, based on reproduction of mass, volume of liquid in the flow, mass, volume flow rate of liquid, created by the device for supplying the working liquid (with the help of pumps), and measurement of flow rate and quantity of liquid in the flow by measuring instruments used in the unit as reference: weighing devices based on load cells or flow meters-counters of liquid. The installation consists of a device for supplying working fluid, means of measuring the mass, volume of liquid in the flow, mass, volume flow rate of liquid: weighing devices based on load cells and flow meters-counters, measuring sections, piping, a set of shut-off and shut-off and control valves, control system, auxiliary equipment, control systems, collection and processing ...

Specifications

Working pressure 0.01...0.4 MPa

Application As working standards of 1, 2, 3 discharges according to GPS, approved by the order of Rosstandart from 07.02.2018 ? 256.

Mark UPRS-200/2

Maximum flow rate, Qmax 200

Minimum flow rate, Qmin 0.006

Maximum flow rate, Qmax 200

Minimum flow rate, Qmin 0.006

Ambient air temperature during operation 15...25 °C

Name Automated verification unit

Warranty period of operation B1/B8 2100/900 MHz

Service life, at least B1/B8 2100/900 MHz a

Tolerance limits of the relative error of the installation when measuring volume with reference liquid flow meters 0.2 %

Tolerance limits of the relative error of the installation when measuring mass or volume with weighing devices (±) 0.05 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
