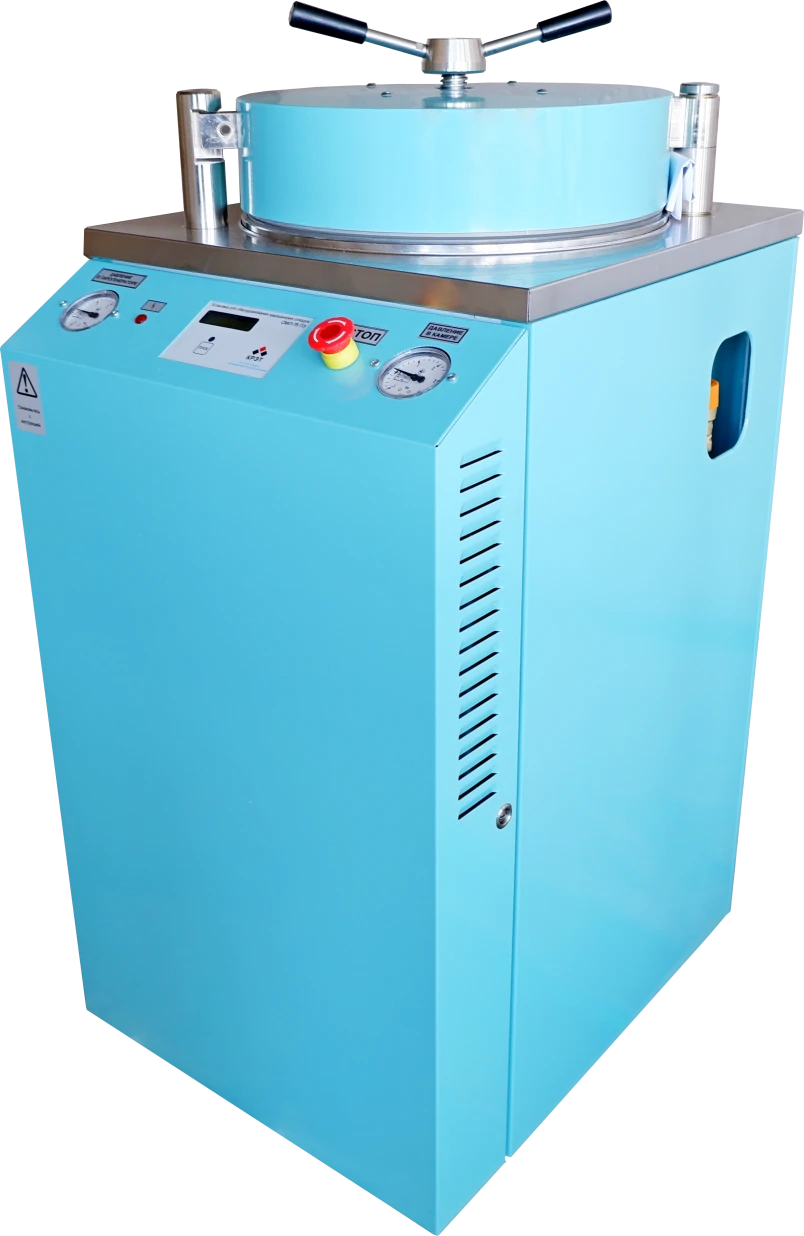

Automatic steam steriliser for sterilisation of drug solutions VKa-75-R-"PZ".

Designated:
For sterilisation by water saturated steam of medicinal solutions in accordance with the order of the Ministry of Health of the Russian Federation ? 214 from 16.07.97 "On quality control of medicines manufactured in pharmacy organisations (pharmacies), hermetically sealed and not sealed in glass containers up to 1000 ml" Useful volume of the chamber, l 75
Power, kW, not more than 6,5
Weight, kg, not more than 130±13
Overall dimensions, (WxHxH), mm 540x686x1210 (±15)
Internal dimensions, (ØxHxH), mm 400?674 (±3)
Set temperature modes 121°C - 8 min.
121°C - 12 min.
121°C - 20 min.
Free programming mode 110-126°C/5-45 min.
Volume of distilled water poured in at the first start of the steriliser, l 35
Time of steriliser heating, not more, min. 45
Accuracy of temperature maintenance, °? ±1
Maximum working pressure, mPa 0,11
Pressure maintenance accuracy, mPa ±0,01
MTBF, cycles 1000
Continuous operation time per day, h, not more than 16
Number of sterilisation boxes.
