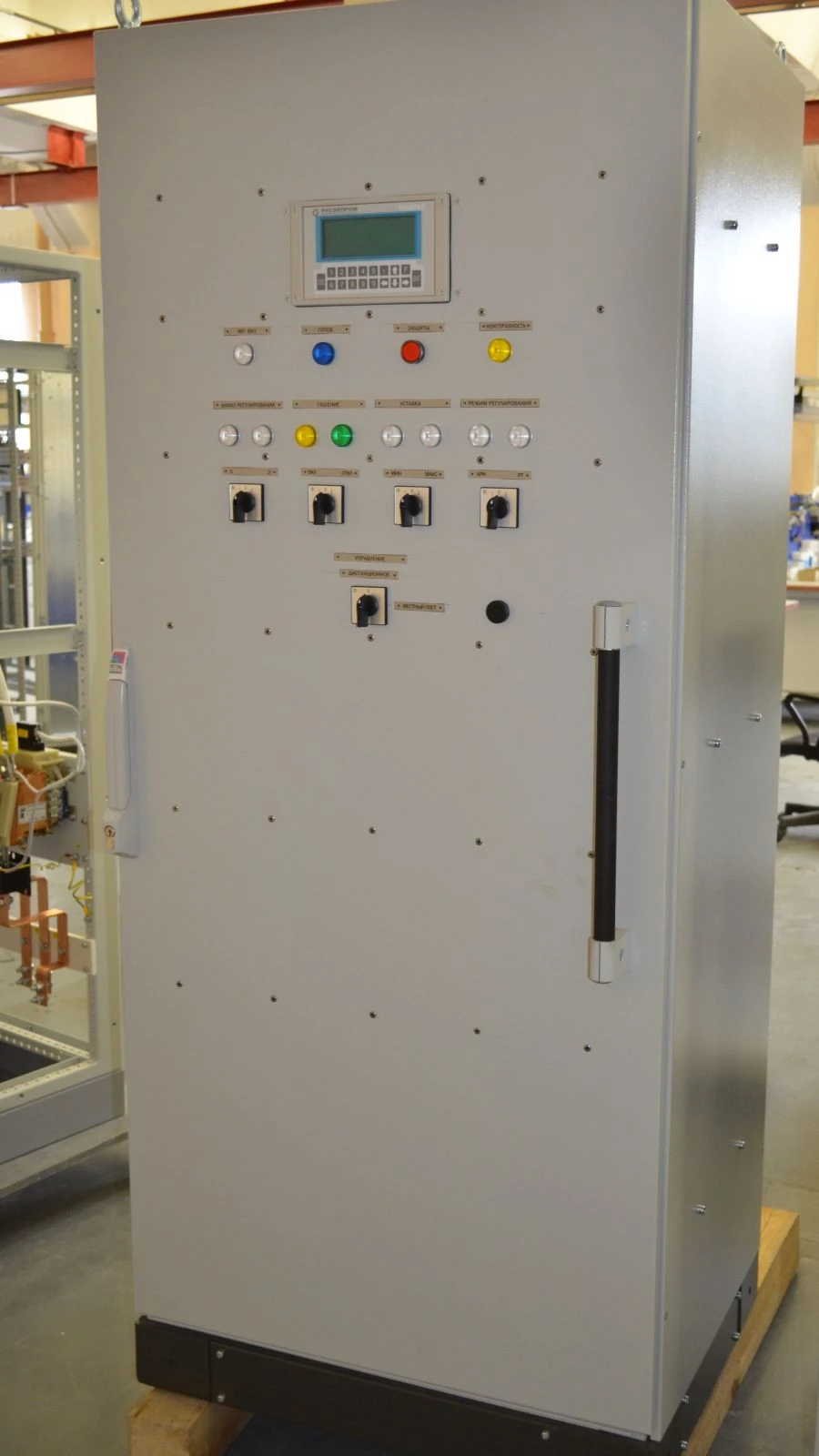

Automatic Excitation Regulation System BSV-REM291-10-165-2.0 OM4 for Synchronous Generator Control

Electrical Gear Parts

Manufacturer: RUSELPROM-ELECTROMASH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

System of automatic excitation regulation BSV-REM-10-165-2,0 OM4 with excitation regulator ARV-REM700, designed to control excitation current of synchronous generator exciter. Automatic excitation regulator ARV-REM700 is based on a microprocessor, and the power unit - the exciter excitation current source - using a thyristor converter.

Specifications

Assignment

Power supply of excitation winding of synchronous generator exciter by regulated rectified current

Operating conditions

Indoors. Ambient temperature from 0 to 45ºC. Relative air humidity not more than (95±3)% at temperature (35±2)º?. It is allowed to work at vibrations with frequencies from 2 to 100 Hz (at frequencies from 2 to 13,2 Hz - with amplitude of movements

Overall dimensions

600x605x1965 mm

Protection degree of the cabinet according to GOST 14254-2015

Not lower than IP43

Climatic execution according to GOST 15150-69

OM4

Designation

???-???291-10-165-2,0 ??4

Average operating life

20 year

Average MTBF

18000

Rated output current

10 A

Rated output voltage

165 V

Exciter excitation current boost ratio

2.0 o.u.

Boost duration

SBVVBG

Mains voltage frequency

SBVVBG

Accuracy of generator voltage maintenance

±2,5%

Rated voltage of generator stator stator voltage measurement circuits (effective value)

100 V

Rated current of the generator stator current measuring circuit (effective value)

5 A

Power consumption by voltage measurement circuits per phase

Not more than 0,1 VA

Power consumption of current measuring circuits per phase

Not more than 0,1 VA

Rated supply voltage for AC circuits

380 V

Power consumption on AC circuits

120 W

Types of communication channels with the upper level control system

Ethernet

Power converter

Thyristor

Number of control channels

2 pcs

Cooling

natural air

Average noise level at a distance of 1 m from the equipment circuit

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
