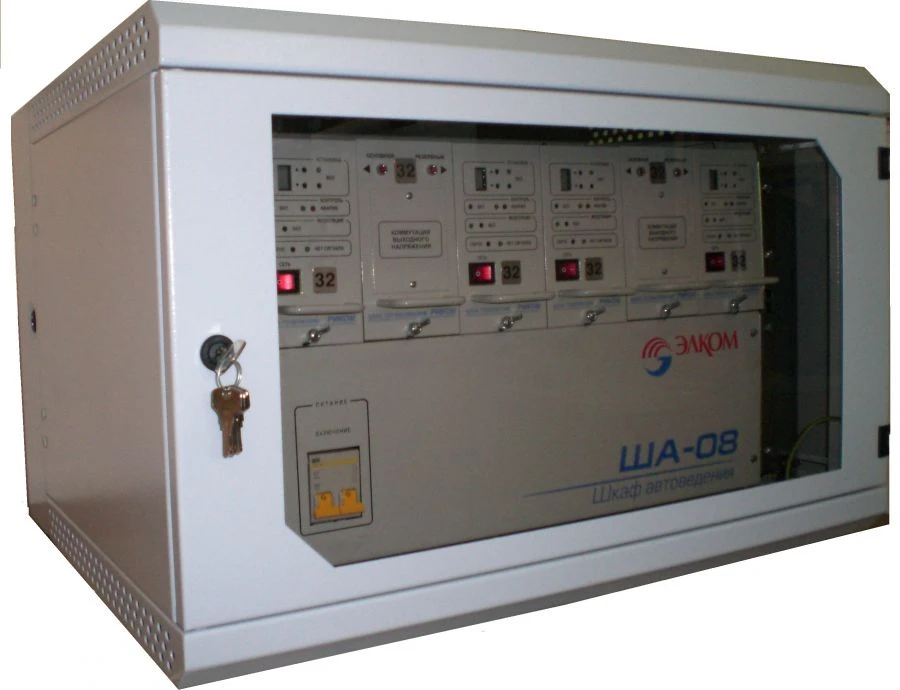

Automatic Control Cabinet SHA-08 for Efficient Metro System Management

Auto-driving cabinet SHA-08, hereinafter referred to as the product, is designed to operate as part of the automatic control system for metro trains. The product is designed to work in the conditions of relay premises of the underground. The SHA-08 houses generator blocks BG-08 and coordination blocks BS-08.

In terms of resistance to climatic factors during operation the product corresponds to group K1 according to OST 32.146-2000, but for operation at ambient air temperature from +1 deg. C to +40 deg. C and relative humidity up to 85%.

According to the degree of protection of the shell, the product is made in a housing of group IP 20B according to GOST 14254-96. In terms of resistance to mechanical effects occurring in the process of operation, the product corresponds to group MS1 according to OST 32.146-2000. Basic technical data: Supply voltage from the mains feeder, V, 220(127) +15/-25%; Maximum consumption at full load, VA, not more than 100; Number of main generator blocks BG-08, pcs, 2; Number of reserve generator blocks BG-...
