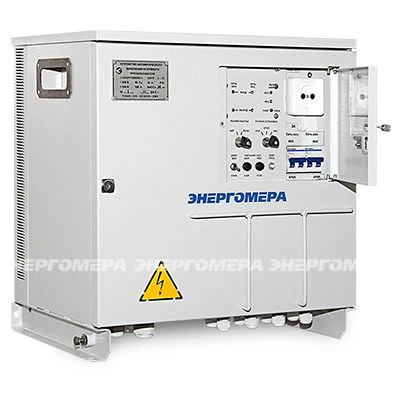

Automatic Backup Converter Switch Device "Energomer" AVR-2 for Cathodic Protection Systems
Manufacturer:
ENERGOMERA OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Devices of automatic switching on of the reserve converter are intended for application as a part of systems in systems of cathodic protection of underground metal constructions of various purposes against electrochemical (ground) corrosion for increase of efficiency and reliability of cathodic protection at the expense of redundancy of cathodic current by automatic switching of the main converter of cathodic protection (PCP) to the reserve one in case of absence or out of permissible limits of voltage of supply network of the main PCP, as well as in case of output of the main PCP.
They are manufactured for the type of climatic version U2 for placement in shelters, shells and block-boxes without maintaining microclimate.
They are manufactured for the type of climatic version U2 for placement in shelters, shells and block-boxes without maintaining microclimate.
Specifications
Technical specification
230 V
Technical specification
176...242 V
Technical specification
40
Technical specification
32 A
Technical specification
105 A
Technical specification
B1/B8 2100/900 MHz kg
Temperature class
-45_+45
Climatic version
U1/U2
Modules
skeleton
Material
iron case with polymer-powder coating
Current capacity
105?
Degree of protection
IP31
Color
RAL 7035
Size; mm
520*504*370 mm
Assignment
Backup inverter switching on.
Length
504 mm
Height
520 mm
Width
370 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
