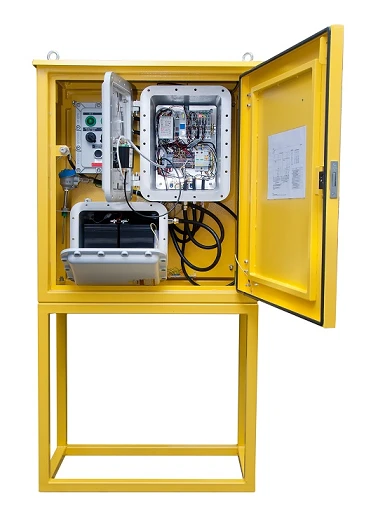

Automated system of remote control of shut-off valves ASDUZA-A-EP-3A-1-V-H

Remote Control Electronics

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Automated system of remote control of shut-off valves ASDUZA-S-EP-3A-3A-1-V-N

Description

2.1ASDUZA is designed for controlling electric actuator of shut-off valves (hereinafter - actuator) by means of telemechanics system, as well as for receiving information via GSM wireless communication channel about main technological parameters of the object and for protection against unauthorised intrusion into the object. The system provides explosion protection in accordance with the requirements of GOST 31610.0-2014 (IEC 60079-0:2011), GOST 31610.11-2014 (IEC 60079-11:2011), type of explosion protection - "Flameproof enclosure" and "Intrinsically safe electrical circuit", explosion protection level "explosion-proof" for mixtures of combustible gases and vapours with air of category IIB+H2 according to GOST 31610.0-2014 (IEC 60079-0:2011). System explosion protection marking: 1Ex d [ia Ga] IIB+H2 T5 Gb X according to GOST 31610.0-2014.

Specifications

Connection Radio channel

Processor architecture X86

Battery type Li-ion

Number of RS485/RS232 ports for connection of external devices (e.g. flow meter, gas volume corrector, etc.) 1 pc

Rated DC supply voltage 24 V

Overall dimensions 1650 x 800 x 400, mm

Weight, not more 180 kg

Number of actuators to be connected 1 pc

Explosion protection marking 1Ex d [ia Ga] IIB+H2 T5 Gb X

Temperature range -40...55 °C

Relative humidity 98 %

Power consumption 25 W

Rated voltage and capacity of the battery pack 24 V, 26 Ah

Switchable DC voltage of control signals supplied to the actuator, not more than 24 V

Number of channels for monitoring the integrity of circuits of executive equipment 2 pc

Total number of analog inputs for connection of signals from external sensors 8 pc

Number of analog inputs for connection of 4 - 20 mA current signals from external gas pressure sensors upstream and downstream o 2 pc

Number of analog inputs for connection of 0 - 5 V voltage signals from external gas temperature sensor 1 pc

Number of analog inputs for connection of 0 - 5 V voltage signals from external outdoor temperature sensor 1 pc

Number of redundant analog inputs for connection of 4 - 20 mA current signals from external sensors 4 pc

Total number of digital inputs for connection of signals from external sensors and devices 7 pc

Number of binary inputs for connection of external binary signals of ball valve position (open/closed) 2 pc

Number of binary inputs for connection of external binary signals of crane unit alarm system 2 pc

Number of redundant discrete inputs for connection of external discrete signals from external sensors and devices 3 pc

Number of binary inputs for monitoring the ACDUSA cabinet door position and unauthorized access signal from the AC push-button s 2 pc

Number of discrete outputs of control signals (opening, closing) by ball valve 2 pc

Number of GSM modules 2 pc

Number of SIM card slots 4 pc

Wireless communication standard GSM 900/1800

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
