Available for Import

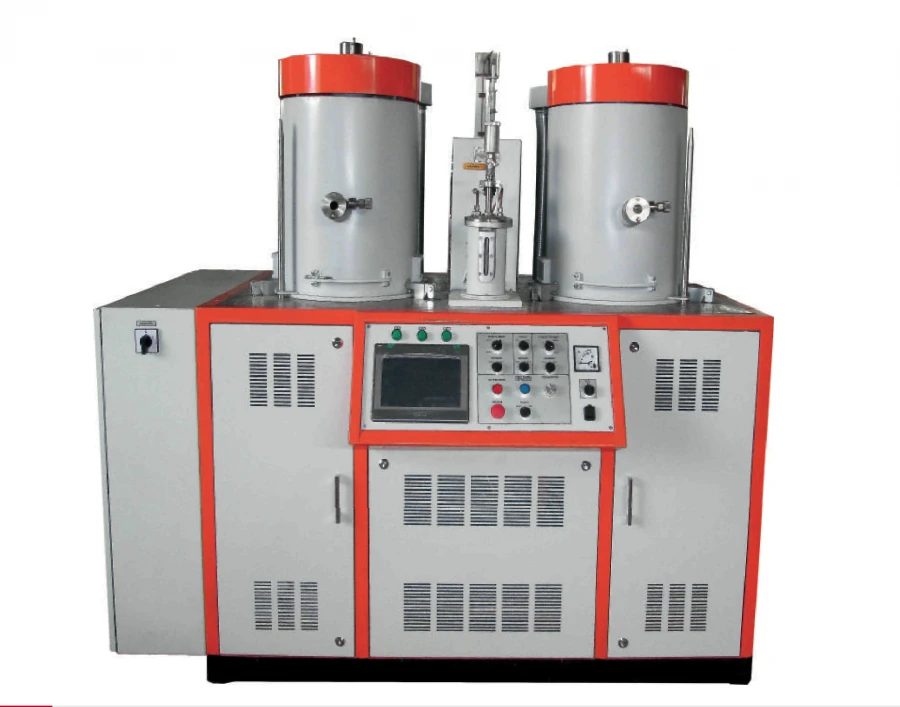

Automated gas-vacuum furnace APGV
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
The furnaces are electric resistance furnaces of batch action with a stationary hearth and vertically moving heating chambers (hoods).
The automated control system is based on a programmable logic controller, which allows programming of furnace operation, automatic control and monitoring of temperature in the chamber, control of pumping systems and the degree of vacuum in the working chamber.
Technical Specifications
| Type of product according to PP RF 616 | Electric resistance furnaces |
|---|---|
| Mark | APGV |
| Temperature of cooling water at the furnace outlet not more than: | 80 °C |
| Number of caps | 1...2 pc |
| The maximum temperature of the medium in the working space is determined on the basis of the technology and is specified in the | 2500 °C |
| The accuracy of temperature maintenance in the working space in steady-state mode is not worse: | ±5 °c °C |
| Power | 25...125 kW |
| Working medium created in the working space of the heating chamber (hood) | Vacuum |
| Flow rate (throughput) of technical water (GOST 17.1.1.04) in the cooling system not less than: | 2...6 |
| Water cooling system and piping connection points shall be leak tight at outlet water pressure and shall provide c | 0.2-0.4MPa (2-4kgf/cm²) MPa |
| The furnace must be able to operate with power supply voltage deviations of ±10% from the nominal values according to GOST | ±10% % |
| Indicators of reliability of the furnace at confidence probability P = 0.8 should be characterized by the following values accor | - average operating time on refusal - not less than 1000h; - average time of restoration at the place of operation - not more than 8h. - average full resource - 25000h. |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
