Automated Etching Line for Burn-In: Model LNGM V3 for Precision Etching

Electroplating Equipment

Manufacturer: VITRI STO CORPORATION LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

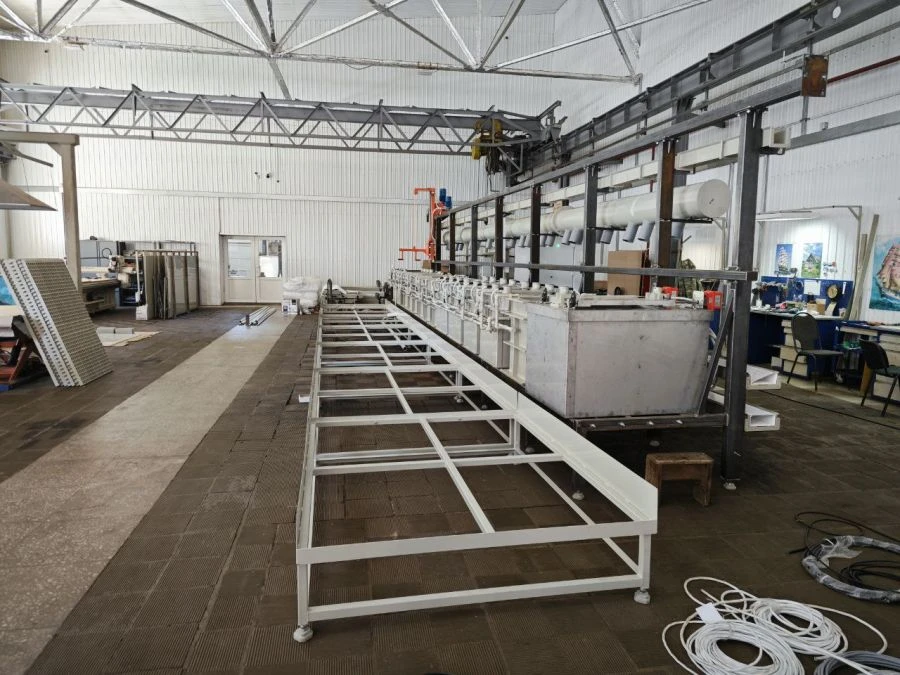

Mechanised auto-operator line of etching on burns (hereinafter referred to as the Line) is a line of baths in a single-row arrangement. The baths are arranged on a common framework, which is also a track. Movement of hangers with parts to working positions is performed by means of a cantilever auto-operator. The main components of the Line: loading/unloading rack, baths, cantilever type auto-operator, auto-operator track frame, control cabinet, control cabinet (insulation application baths), power cabinet, computer cabinet, filtration units, cleaning system, service platform, portable boom, local exhaust ventilation system within the line, water and air preparation unit, media distribution piping system, industrial sewage system within the line.

Specifications

Type of product according to PP RF 616

Specialized equipment for other non-metallic materials

Operating water pressure

0.6 MPa

Compressed air consumption

Operating pressure of compressed air

0.6 MPa

Supply mains voltage

380 V

Time to reach the temperature mode from the temperature of 18C

Filter units

3 pcs

Loading/unloading sections

1 pcs

Number of baths in the set

16 pcs

Number of positions in the line

15 pcs

Maximum size of workpieces (diameter)

400 mm

Maximum size of workpieces (length)

400 mm

Width of tubs

500 mm

Depth of baths

700 mm

Line power consumption

75 kW

Power consumption of the isolation section

10 kW

Power consumption of ventilation fan

1.5 kW

Compressed air consumption

Bath heating method

Electric (TEN)

Auto-operator control modes

Semi-automatic with possibility of switching to manual mode

Cantilever type autopilot, load capacity

150 kg

Line design

Single-row automated with movement of parts through the baths by an auto-operator.

Workpiece material to be machined

16?3??????-?, 12?2?4?-?, etc.

Area for simultaneous loading of parts into one tub

0.4

Line length (excluding computer cabinet)

15000 mm

Width (excluding control cabinet)

4500 mm

Height

3500 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
