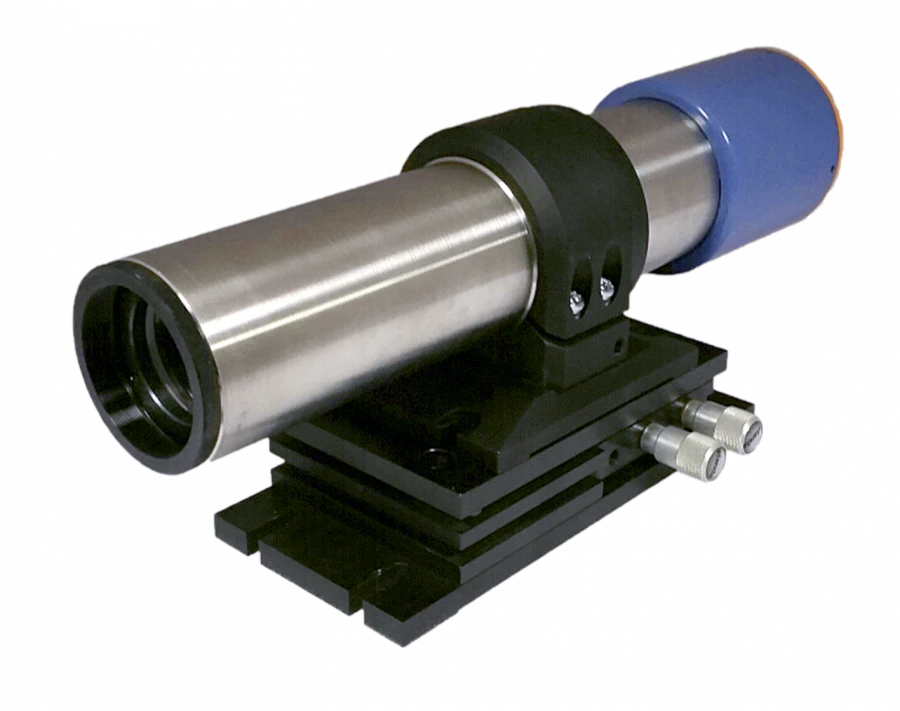

Autocollimator AK-025M
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Autocollimator is designed to measure the angles of rotation and inclination of the object, to determine the tolerances of the shape and location of reflective surfaces, to measure the parameters of optical wedges, vibrations, etc. Also this group of optoelectronic devices is widely used for adjustment of various systems and participates in the composition of many verification schemes.
Specifications
Angle measuring range: horizontal plane
±20 ppm
Angle measuring range: vertical plane
±15 angular min
Tolerance limits of absolute error of angle measurements: in the range ±600 arc sec
±0.1 arc sec
Tolerance limits of absolute error of angle measurements: in the rest range
±0.25 arc sec
Discreteness of reference
0.01 arc sec
Maximum distance to the measuring object
0.25 m
