Auto-tracking cabinet SHA-08

Railway & Traffic Control Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

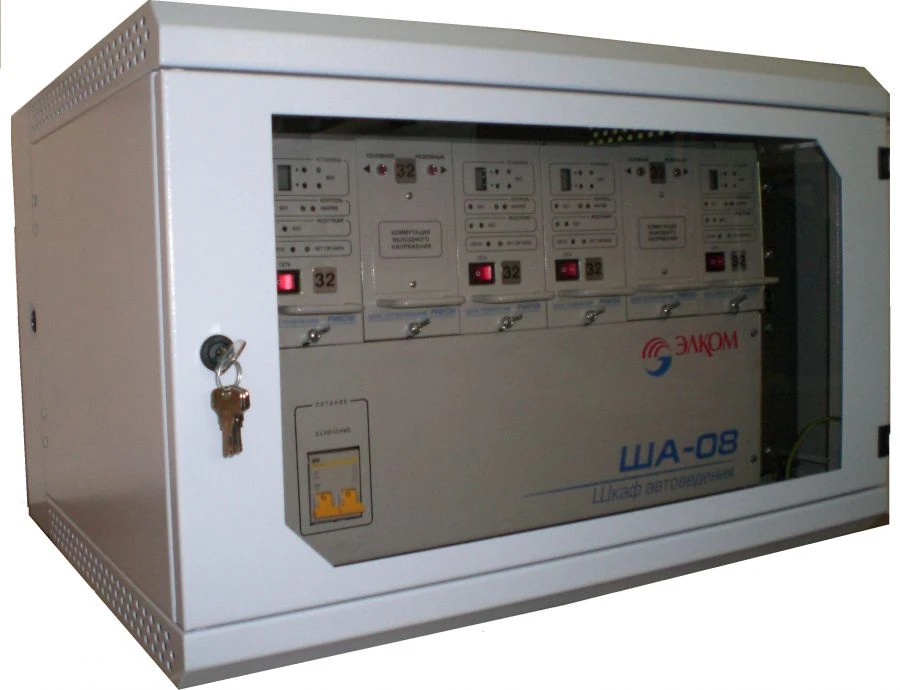

Auto-driving cabinet SHA-08, hereinafter referred to as the product, is designed to operate as part of the automatic control system for metro trains. The product is designed to work in the conditions of relay premises of the underground. The SHA-08 houses generator blocks BG-08 and coordination blocks BS-08. In terms of resistance to climatic factors during operation the product corresponds to group K1 according to OST 32.146-2000, but for operation at ambient air temperature from +1 deg. C to +40 deg. C and relative humidity up to 85%. According to the degree of protection of the shell, the product is made in a housing of group IP 20B according to GOST 14254-96. In terms of resistance to mechanical effects occurring in the process of operation, the product corresponds to group MS1 according to OST 32.146-2000. Basic technical data: Supply voltage from the mains feeder, V, 220(127) +15/-25%; Maximum consumption at full load, VA, not more than 100; Number of main generator blocks BG-08, pcs, 2; Number of reserve generator blocks BG-...

Technical Specifications

Equipment	В шкафу установлены 4 БГ-08 (2 основных; 2 резервных) и 2 БС-08. В шкафу смонтированы соед. кабели. В шкафу установлены клеммные колодки для подключения двух линий автоведения. В нижней части шкафа установлен автомат-й сет. выключатель и фильтр
Designation	SHA-08
Degree of protection of the product shell is made in the housing according to IP group	20?
Supply voltage from mains feeder, V	220(127) +15/-25%
Number of main units of BG-08 generators, pcs.	4 pc
Number of coordination blocks BS-08, pcs.	2 pc
Maximum number of connected auto-tracking lines, pcs., not less	2 pc
Overall dimensions of the product, mm	675x450x660
Weight of the whole product, kg, not more	30 kg
Product service life, years, not less	10 a
List of tunable possible frequencies: kHz.	20, 25, 32 ? 42
Operation at ambient air temperature, in the range, deg. ?	1...40
Maximum consumption at full load	100

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
