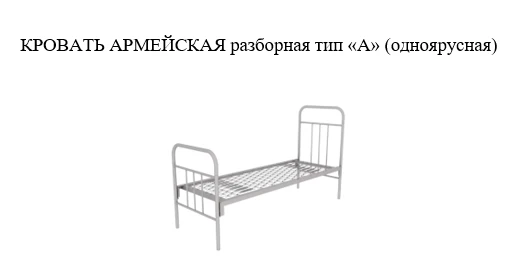

Army collapsible bed type "A" (single tier) EkoMet Ltd.

The product is a prefabricated and demountable construction. The metal frame is painted with powder enamel. The bed is made with a rhombic grid. Bed size: length 1900 mm, width - 695 mm, height of backrests (1 tier) - 850 mm and 1160 mm. The backrests of the bed consist of a removable arch made by bending from a round tube. The columns of the low backrests are put on the crimped ends of the columns of the high backrests. The columns are made of 28 mm round tube, each of them is joined by two welded, reinforcing horizontal crossbars made of 22 mm round tube. The crossbars are connected by three vertical thrust posts made of 12 mm round tube. The bed frame (bed) is rectangular in shape and consists of two bearing horizontal steel angles 40x40 mm. and connecting them, rigidly welded Reinforcements transverse - two steel angles 40x40 mm section. On the Frame with the help of bent hooks is hanged Rhombicheski mesh
