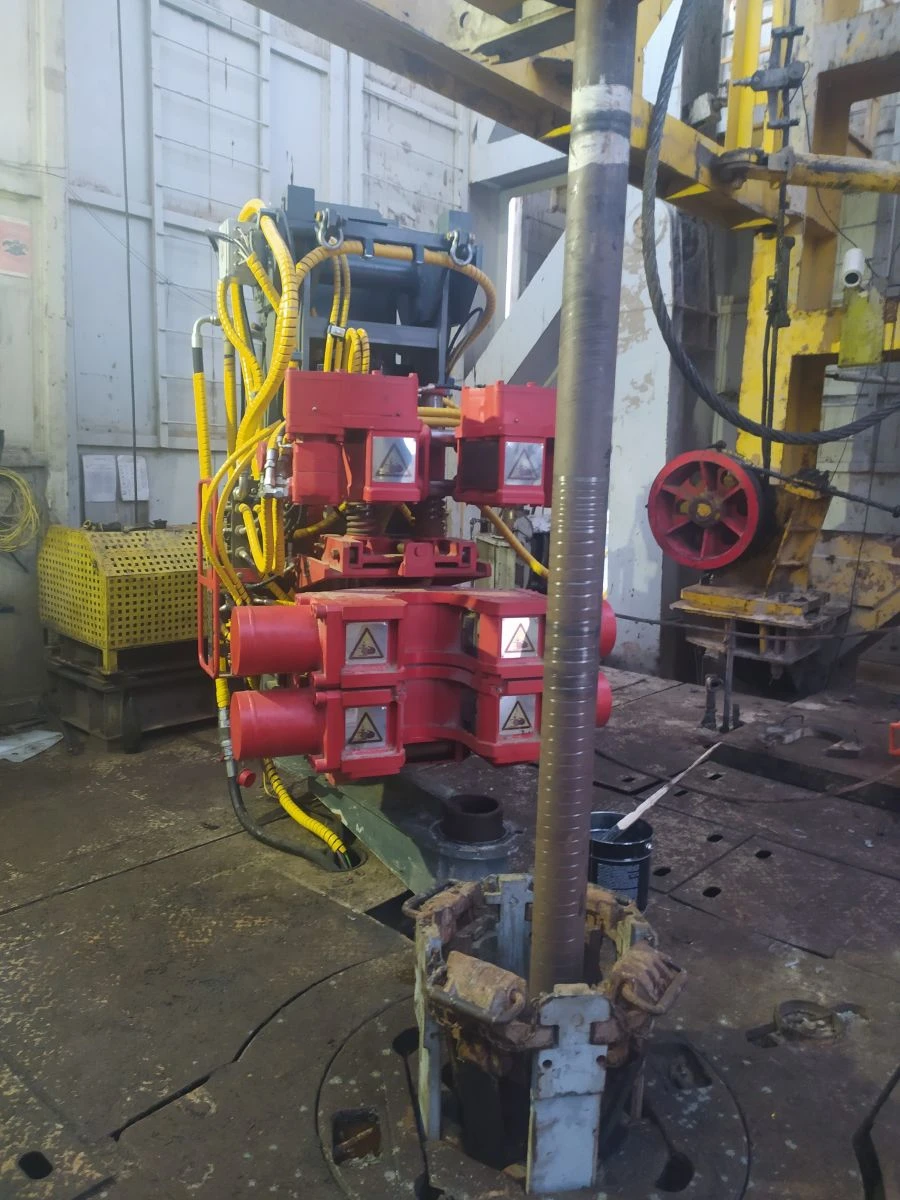

Armatic automatic drilling spanner

The ARMATIC automatic drilling tong with software control is designed
for fast, safe, high-precision unscrewing and unscrewing of drill and
casing pipes with outer diameters from Ø73 mm (2 7/8") to Ø245 mm (9 5/8"), controlled by an industrial PC-controller with an
industrial PC-controller with Windows 7 real-time operating system.
All electrical equipment is made in explosion-proof version.

Features of the ARMATIC spanner:
- The largest range of diameters of drill pipe to be screwed together among the Russian
analogues
- Possibility of data transmission via GSM / Wi-Fi communication and USB ports (digitalisation)
- Reduced make-up / unmake-up cycle (25 sec.)
- Greater horizontal movement among Russian analogues (2 m) - increased possibility of mounting the wrench on the drilling site.
Increasing the possibility of wrench installation on the drilling site.
- Online visualisation of the wrench status (digitalisation)
- Sensor control panel
- Possibility to install the key on the standard place of the battery without modification of the drilling rig.
