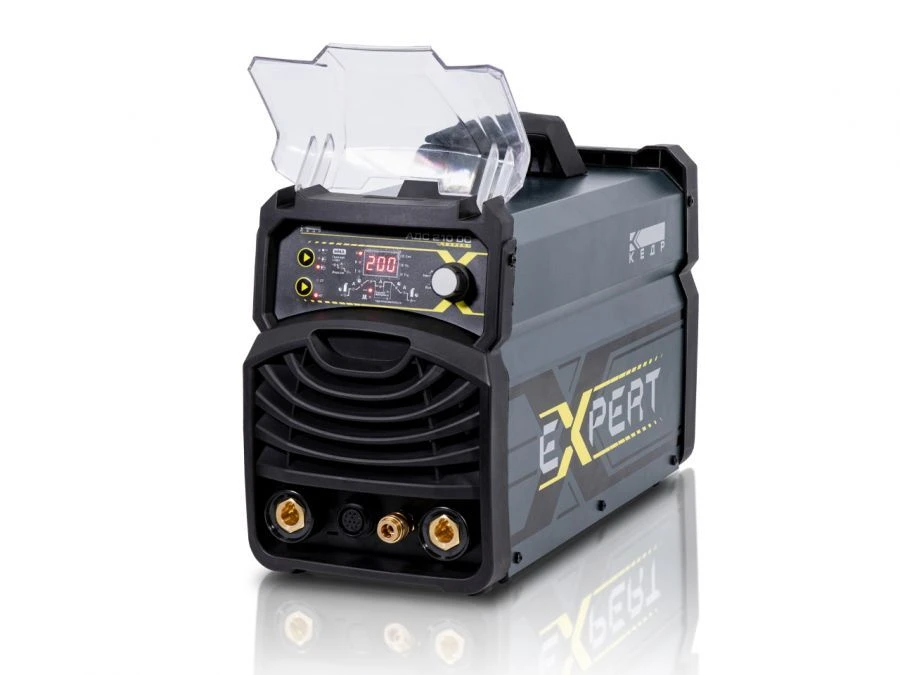

Argon arc welding unit KEDR ADS 210 DC EXPERT
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
KEDR ADS 210 DC EXPERT argon-arc welding unit is an inverter-type machine for TIG and MMA welding with control of output parameters by means of a digital controller.
The argon-arc welding unit KEDR ADS 210 DC EXPERT has the following features:
1. Digital control system in real time mode displays welding parameters;
2. pulse welding mode;
3. The machine has a system of stable high-frequency excitation of the welding arc regardless of the heating of the tungsten electrode;
4. Adjustments of current rise and fall, gas supply before and after welding, adjustment of pulse frequency;
5. IGBT technology, low power consumption;
6. Wired remote control and foot pedal connection;
7. Smart protection against too high/low input voltage, overcurrent and overheating;
8. High IP23 protection class;
9. High SP value KEDR ADS 210 DC EXPERT: 200A at 100% SP.
The argon-arc welding unit KEDR ADS 210 DC EXPERT has the following features:
1. Digital control system in real time mode displays welding parameters;
2. pulse welding mode;
3. The machine has a system of stable high-frequency excitation of the welding arc regardless of the heating of the tungsten electrode;
4. Adjustments of current rise and fall, gas supply before and after welding, adjustment of pulse frequency;
5. IGBT technology, low power consumption;
6. Wired remote control and foot pedal connection;
7. Smart protection against too high/low input voltage, overcurrent and overheating;
8. High IP23 protection class;
9. High SP value KEDR ADS 210 DC EXPERT: 200A at 100% SP.
Specifications
Type of power supply
inverter
Maximum welding current
200 A
Power
4.2 kW
Maximum electrode diameter
5 mm
Required mains voltage
220 V
Anti-slip function
Got it
Power
4.2 kW
Power
4.2 kW
Type of product according to PP RF 616
Welding machines for welding with non-melting electrode
Type of product according to PP RF 616
Welding machines for welding with non-melting electrode
Maximum welding current
200 A
Power
4.2 kW
Maximum electrode diameter
5 mm
Required mains voltage
220 V
Anti-slip function
Got it
Minimum welding current
5 A
Operating voltage
220 V
Rated welding current
200 A
Minimum welding current
5 A
Operating voltage
220 V
Rated welding current
200 A
Weight
8.6 kg
Equipment
Welding machine - 1 pc. Cable with clamp on the product - 1 pc. Gas hose - 1 pc. Operating manual
Maximum power consumption, kW
4.2
Operating modes (continuous/pulse)
continuous
Length
430 mm
Width
180 mm
Height
300 mm
No-load voltage
-13 V
Maximum welding current
200 A
Frequency of supply voltage
SBVVBG
Automatic welding
no
Semi-automatic welding
no
argon-arc welding
Armoured glass
Manual arc welding
Armoured glass
Contact welding
no
AC mains supply voltage
220 V
Mains frequency
SBVVBG
Maximum power consumption, kW
4.2
Load Duration (LL)
100 %
Operating modes (continuous/pulse)
continuous
Type
argon arc welding
Length
430 mm
Dimensions
430x180x300 mm
Width
180 mm
Weight
8.6 kg
Height
300 mm
No-load voltage
-13 V
Maximum welding current
200 A
Frequency of supply voltage
SBVVBG
Automatic welding
no
Semi-automatic welding
no
argon-arc welding
Armoured glass
Manual arc welding
Armoured glass
Contact welding
no
AC mains supply voltage
220 V
Mains frequency
SBVVBG
Load Duration (LL)
100 %
Weight
8.6 kg
Type
argon arc welding
Dimensions
430x180x300 mm
Weight
8.6 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
