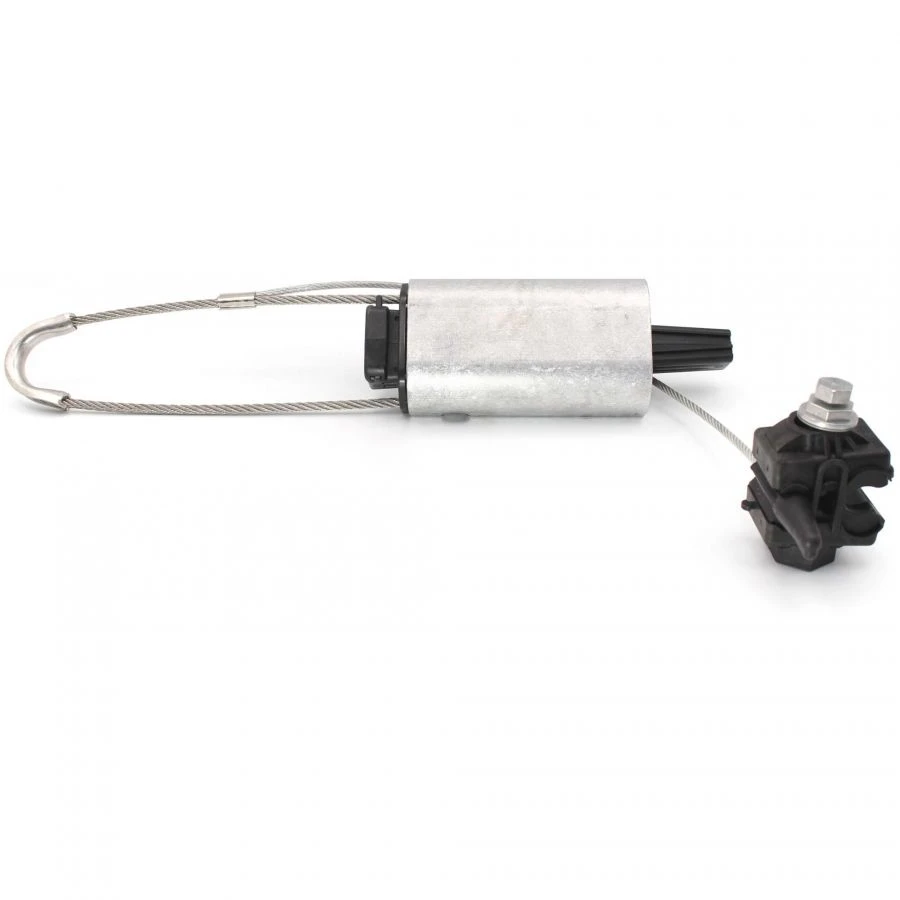

Anchor clamp DN-150 Rpi

They are used for anchoring protected wires to tension insulators on end and corner supports.
The body is made of aluminium alloy by extrusion, which provides high strength of the clamp and its durability.
The clamps are designed for installation at temperatures from -20°C to +40°C and operation at temperatures from -60°C to +50°C.

Advantages of use

The clamping cable is made of stainless steel, with ball fasteners at both ends for convenient and secure attachment in the enclosure.
The clamps can be mounted without tools.
The protective insulation is not removed from the conductor at the clamping point, thus the tightness of the conductor is not compromised.

Features

Clamp DN-150 Rpi is completed with a piercing clamp P 645.
A flexible conductor is pressed into the cable of the clamp to carry the electric potential of the wire to the body of the clamp..
