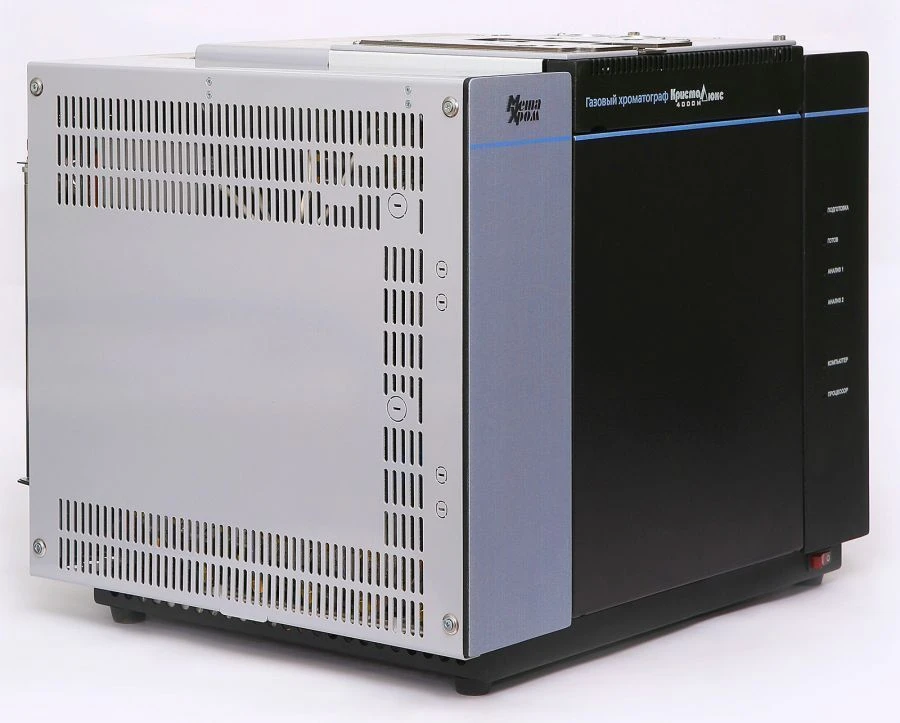

Analytical gas chromatograph "Crystallux-4000M"

Universal Substance Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Analytical gas chromatograph "Crystallux-4000M" (medical purpose)

Description

Gas chromatograph "Kristalluks-4000M" is fully automated, starting from sample input and ending with the processing of chromatographic information, including the functions of automatic control of thermostat temperature, flow rate and pressure of carrier gas, auxiliary gases, automatic ignition of detectors, control of flame burning during operation, measurement of detector signals using 24-bit ADC.
The gas chromatograph includes more than 30 basic models, each of which can be customised to suit the customer's specific application. The chromatograph consists of an analytical unit, a station for control, monitoring and processing of chromatographic information, which is a personal computer, and the "NetChrom" programme running in Windows and Linux environments. In addition, additional programmes are supplied: calculation of calorific values of natural gas, transformer oil diagnostics, calculation of Schuchart control charts, etc..

Specifications

Relative root mean square deviation (RMSD) of the chromatograph output signal (peak retention time) at automatic - PID, PID-Ph, DTP, micro-DTP, EZD, micro-EZD: 0.1; - TCD, TID, PFD: 0.2; - FID, GID, FFM: 0.4.

Relative change in chromatograph output signal (peak area and retention time) over 8 hours of continuous operation at fixed - PID, PID-Ph, DTP, micro-DTP, FFM: ±5; - TCD, EZD, micro-EZD, TID, PFD, FID, GID: ±10.

Electrical power supply parameters - AC voltage, V: from 187 to 242; - AC frequency, Hz: 50±1.

Power consumption, kV-A, not more 0,9

Overall dimensions of the chromatograph without service devices, packing and FFM, mm, not more 500x500x550

Weight of the chromatograph without service devices, packing and FFM, kg, not more 39 kg

Operating conditions - Ambient temperature, °?: from 10 to 35; - Relative humidity, %, not more: 80. - Atmospheric pressure, kPa: from 84 to 107.

Average service life, years 8 a

Average MTBF of one channel of analytical data signal formation (without service devices), hr 10000

Detection limit, g/mL, max. - hydrocarbon DTP: 8.0x10-10; - hydrocarbon micro-DTP: 3.5x10-10; - hydrogen DTP: 1.0x10-10; - hydrogen micro-DTP: 8.0x10-11; - hydrogen TCD: 5.0x10-11.

Detection limit, g/s, max. - PID on carbon in hydrocarbons (heptane, propane, etc.): 2.0x10-12; - PID h on carbon in hydrocarbons (heptane, propane, etc.): 9.0x10-13; - EZD on lindane: 1.7x10-14; - micro-EZD on lindane: 3.9x10-15; - PFD on phosphorus in organophosphorus compounds

Signal-to-noise ratio of FFM on hexachlorobenzene, not less than - FFM "M7-80EI" - 500:1; - FFM "Maestro" - 1500:1.

Relative root mean square deviation (RMSD) of the chromatograph output signal (peak retention time) at manual input p - PID, PID-Ph, DTP, micro-DTP, TCD, PFD, FFM, EZD, micro-EZD: 2; - TID, FID, GID: 4.

Relative standard deviation (RSD) of the chromatograph output signal (peak area) at manual sample input, %, n - PID, PID-Ph, DTP, micro-DTP, TCD: 2; - EZD, micro-EZD, PFD, TID, FID, GID: 4; - FFM: 5.

Relative root mean square deviation (RMSD) of the chromatograph output signal (peak area) with automatic liquid injection - PID, PID-Ph, DTP, micro-DTP, EZD, micro-EZD: 1; - TCD, TID, PFD: 2; - FID, GID, FFM: 4.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
