Available for Import

Analogue output device. 4 output unified current/voltage signals, individual galvanic isolation, power supply.

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

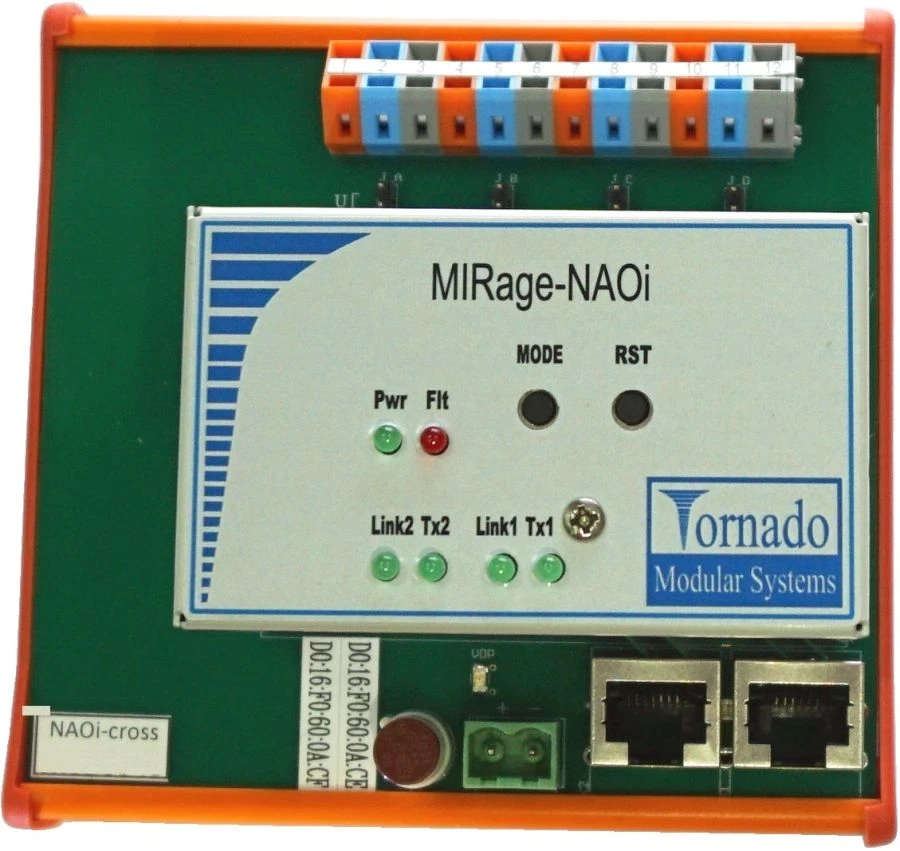

The MIRage-NAOi devices are analogue signal output devices. MIRage-NAOi devices have 4 analogue measurement channels (AO) designed to generate analogue voltage or current signals. The channels are galvanically isolated from each other and from the system part. The signals are generated under the control of commands transmitted over a redundant Ethernet10/100 twisted pair digital interface using the ModBus protocol. MIRage-NAOi devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Operating temperature range -25...70 °C

Wago terminal block, conductor cross-section up to 2.5 mm2

Mechanical design DIN rail mounting

Weight, not more 450 g

Overall dimensions 114x108x111 mm

Galvanic insulation Individual

Consumption current without taking into account sensors, max. 110 mA

External supply voltage (+/- 15%) 24 V

Data exchange protocol Modbus TCP/UDP slave

Data transfer rate 10

Request response time at 100 Mbit network speed, no more than 2

Interface type Ethernet 10/100BaseTX - 2 channels

Number of measuring channels 4 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
