Analogue of NUTRITIONAL 11Ch3BK. Steel ball valve ALSO series GAS MUFFLED FULLY WELDED with all-welded body KSH.?.?.?.GAS.032.

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Analogue of STEEL 11Ch3BK. Steel ball valve ALSO series GAS MUFFLED FULLY WELDED with all-welded body KSH.M.P.N.GAS.015. Analogue of NUTRITIONAL 11Ch3BK. Steel ball valve ALSO series GAS MUFFLED FULLY WELDED with all-welded body KSH.?.?.?.GAS.020. Analogue of NUTRITIONAL 11Ch3BK. Steel ball valve ALSO series GAS MUFFLED FULLY WELDED with all-welded body KSH.M.P.N.GAS.025. Analogue of NUTRITIONAL 11Ch3BK. Steel ball valve ALSO series GAS MUFFLED FULFILLED with all-welded body KSH.M.P.N.GAS.050. Analogue of NUTRITIONAL 11Ch3BK. Steel ball valve ALSO series GAS MUFFLED FULL BODY with all-welded body KSH.?.?.?.GAS.065.

Analogue of NUTRITIONAL 11Ch3BK. Steel ball valve ALSO series GAS MUFFLED FULLY WELDED with all-welded body KSH.M.P.N.GAS.040.

Description

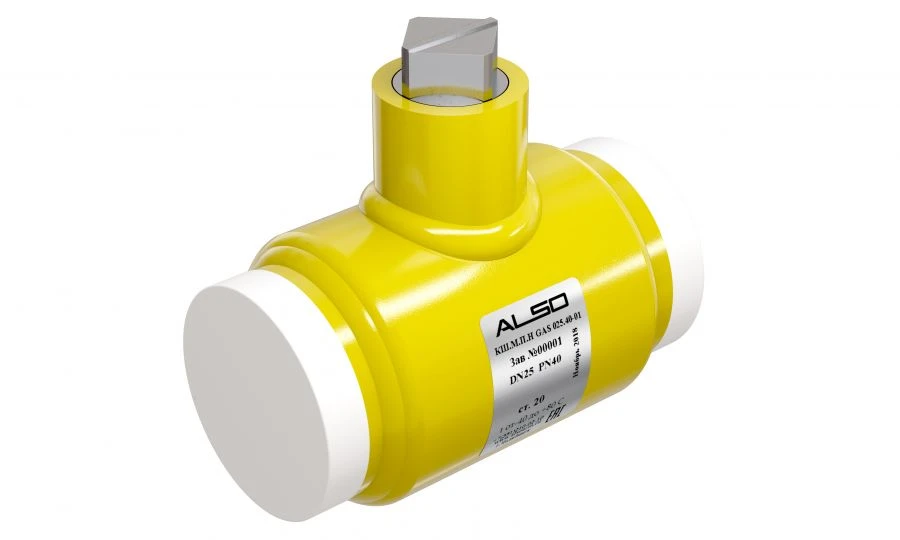

Steel ball valve ALSO series GAS with all-welded body is designed for installation in pipelines of gas distribution systems and gas consumption of natural gas, liquefied hydrocarbon gases (LHG) propane-butane and non-aggressive gaseous and liquid media, in relation to which the materials of the valve corrosion-resistant.
Ball valves ALSO series GAS are certified by the system of voluntary certification GAZSERT. The control is made under the handle 11h3bk. Installation is carried out without changing the existing pipeline in any necessary position. The seal on the shut-off body is made of carbon-filled fluoroplastic (F4K20). The stem seal consists of a plain bearing made of F4K20 (PTFE+20%C) and two rings made of fluorosiloxane.

Specifications

Nominal diameter DN (DN) 32

Nominal pressure PN (Ru) 4 MPa

Material Steel

Steel grade 09G2S

Connection type coupling

Shutter type Char

nominal passage complete
