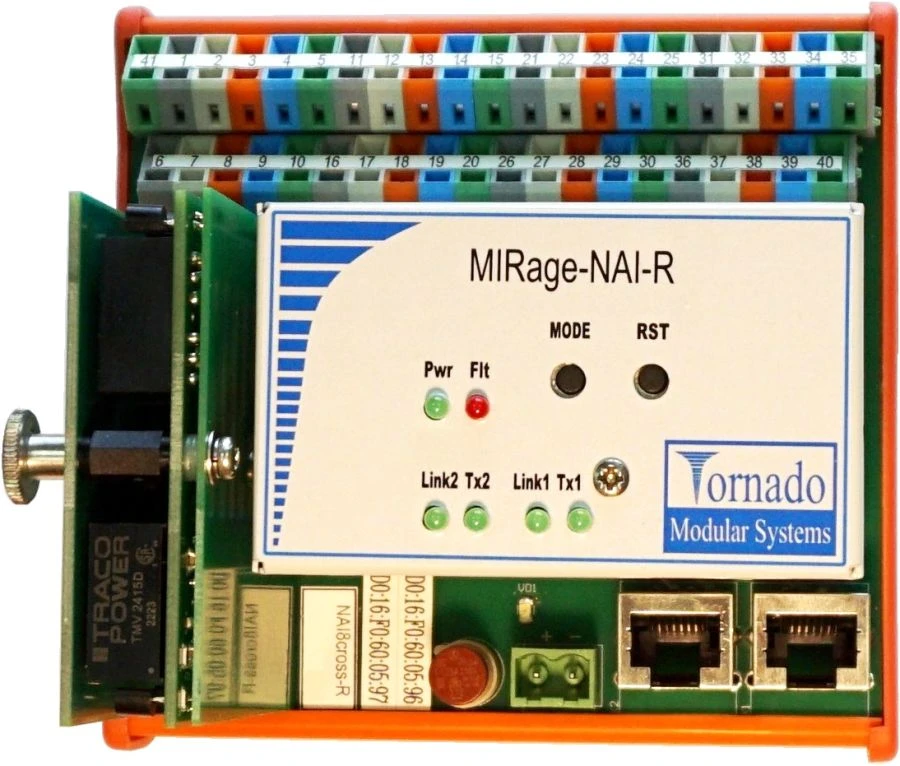

Analog Input Device with 8 Universal Current Signals, MIRage-NAI-R-A

Available for Import

Analog Input Device with 8 Universal Current Signals for Data Acquisition

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Analogue input device. 8 unified voltage signals, group galvanic isolation, sensor power supply, spec. Analogue input device. 8 unified current signals, group galvanic isolation, power supply of sensors, spec.

Description

The MIRage-NAI-R-A devices are designed to input analogue DC signals from sensors with active current output and convert them into digital form when building distributed information and control systems. The devices are designed for measurement of unified current values and transmission of measured values over twisted pair via redundant Ethernet 10/100 twisted pair interface using ModBus protocol. The MIRage-NAI-R-A instruments have 8 differential input measurement channels (IR). MIRage-NAI-R-A devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Consumption current min (all sensors are active), max.

130 mA

Operating temperature range

-25...70 °C

Wago terminal block, conductor cross-section up to

2.5 mm²

Mechanical design

DIN rail mounting

Weight, not more

600 year

Overall dimensions

114x108x111 mm

Galvanic insulation

Group

Consumption current without taking into account sensors, max.

105 mA

External supply voltage (+/- 15%)

24 V

Data exchange protocol

Modbus TCP/UDP slave

Data transfer rate

Request response time at 100 Mbit network speed, no more than

Interface type

Ethernet 10/100BaseTX - 2 channels

Number of measuring channels

8 pcs

Current consumption max (all sensors are passive and in maximum consumption), not more than

490 mA

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
