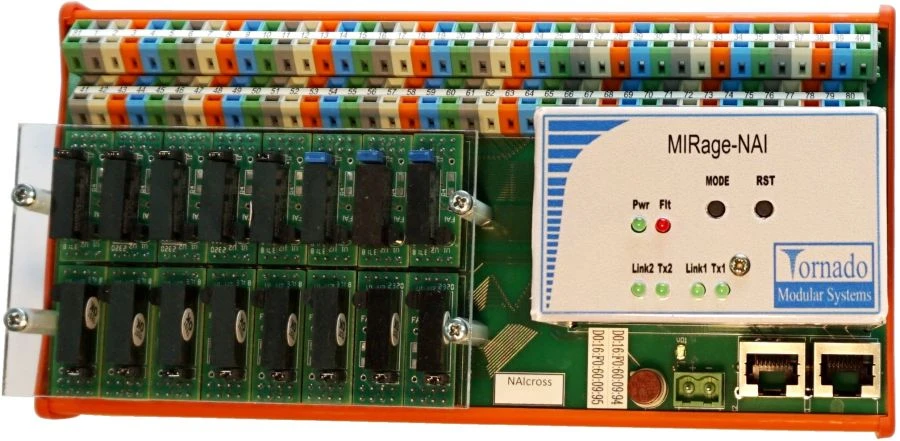

Analog Input Device with 16 Standard Voltage Signals, Group Galvanic Isolation, Sensor Power Supply (MIRag) Available for Import

Analog Input Device with 16 Voltage Signals and Galvanic Isolation for Control Systems (MIRag)

Automatic Control Devices
Manufacturer: Tornado Modular Systems LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The MIRage-NAI-V devices are designed to input analogue DC voltage signals and convert them into digital form when building distributed information and control systems. The devices are designed to measure unified voltage values and transmit the measured values over twisted pair via redundant Ethernet 10/100 twisted pair interface using ModBus protocol. The MIRage-NAI-V instruments have 16 differential input measurement channels (IR). MIRage-NAI-V devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Operating temperature range
-25...70 °C
Wago terminal block, conductor cross-section up to
2.5 mm²
Mechanical design
DIN rail mounting
Weight, not more
700 year
Overall dimensions
216x108x111 mm
Galvanic insulation
Group
Consumption current without taking into account sensors, max.
105 mA
External supply voltage (+/- 15%)
24 V
Data exchange protocol
Modbus TCP/UDP slave
Data transfer rate
10
Request response time at 100 Mbit network speed, no more than
2
Interface type
Ethernet 10/100BaseTX - 2 channels
Number of measuring channels
16 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
