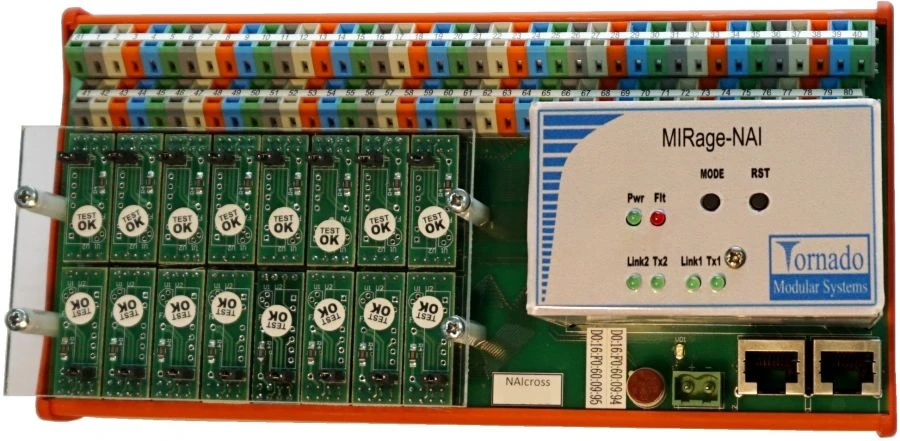

Analog Input Device with 16 Standard Current Signals, MIRage-NAI-A

Available for Import

Analog Input Device with 16 Standard Current Signals for Data Acquisition - MIRage-NAI-A

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NAI-A devices are designed to input analogue DC signals from sensors with active current output and convert them into digital form when building distributed information and control systems. The devices are designed for measurement of unified current values and transmission of measured values over twisted pair via redundant Ethernet 10/100 twisted pair interface using ModBus protocol. The MIRage-NAI-A devices have 16 differential input measurement channels (IR).The MIRage-NAI-A devices are designed for the creation of automated process control systems (APCS) in various industries.

Specifications

Number of measuring channels

16 pcs

Interface type

Ethernet 10/100BaseTX - 2 channels

Request response time at 100 Mbit network speed, no more than

Data transfer rate

Data exchange protocol

Modbus TCP/UDP slave

Power supply voltage from external source (+/-15%)

24 V

Consumption current without taking into account sensors, max.

105 mA

Galvanic insulation

Group

Overall dimensions

216x108x111 mm

Weight, not more

700 year

Mechanical design

DIN rail mounting

Wago terminal block, conductor cross-section up to

2.5 mm²

Operating temperature range

-25...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
