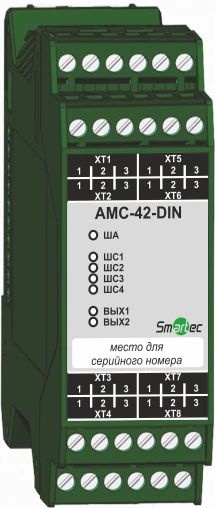

AMZ-42-DIN Address module

Block (module) input-output series AMC-42 (hereinafter - the module), which is part of the device receiving and monitoring fire alarm and control addressable "Vesta 01F", is designed for the formation and control of four unaddressed loops "alarm loop" in which are connected any devices (not having their own current consumption) with normally closed or normally open outputs of the type "dry contact" and two output unaddressed communication lines in which are connected executive devices. AMC-42-DIN - plastic high-profile housing on a DIN-rail, the module provides monitoring of the integrity of backlash-free input (loops "loops") and output lines to open and short circuit, as well as monitoring the presence of supply voltage intended for executive devices.
