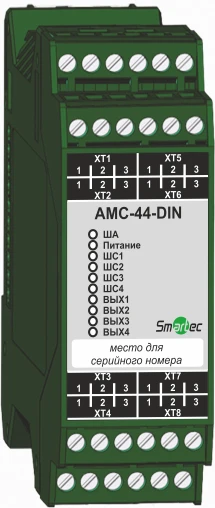

AMS-44-DIN Address module

Block (module) input-output series AMC-44 (hereinafter - the module), which is part of the device receiving and controlling fire alarm and control addressable "Vesta 01F", is designed for the formation and control of four unaddressed loops "Loop" in which are connected non-addressable fire, security detectors (sensors) and four output unaddressed communication lines in which are connected to the executive devices. AMC-44-DIN - plastic high-profile housing on a DIN-rail, the module provides monitoring of the integrity of non-addressable input (loops "loops") and output communication lines for open circuit and short circuit, as well as monitoring the presence of supply voltage intended for executive devices.
