Aluminum Conductor Power Cable AABL-6 3x95 Available for Import

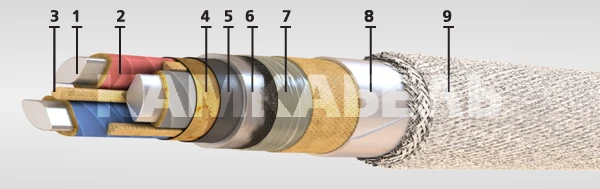

Aluminum Conductor Power Cable AABL-6 3x95 for Reliable Energy Supply

Aluminium Power Cables 1kV
Manufacturer: KAMSKY CABLE LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Power cable with aluminium core AABL-6 3x240 Power cable with aluminium core AABL-6 3x185(ozh) Power cable with aluminium core AABL-6 3x70 Power cable with aluminium core AABL-6 3x240(ozh) Power cable with aluminium core AABL-6 3x185

Description

Cables are designed for operation in macroclimatic regions with temperate and cold climate. Cables are designed for operation in the ground (trenches) with low and medium corrosive activity with no stray currents, if during operation the cables are not subjected to tensile forces. Cables with non-flowing insulating impregnation composition (CAABL) are intended for laying on vertical and inclined sections of routes without limitation of level difference.

Specifications

Mark
AABL-6
Number and cross section of conductors, pcs x mm2
3?95
Estimated cable weight, kg/km
2838
Outer diameter
43.6 mm
Rated DC voltage
15 kV
Rated AC voltage with frequency 50 Hz
6 kV
Operating temperature range
-50...50 °C
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
