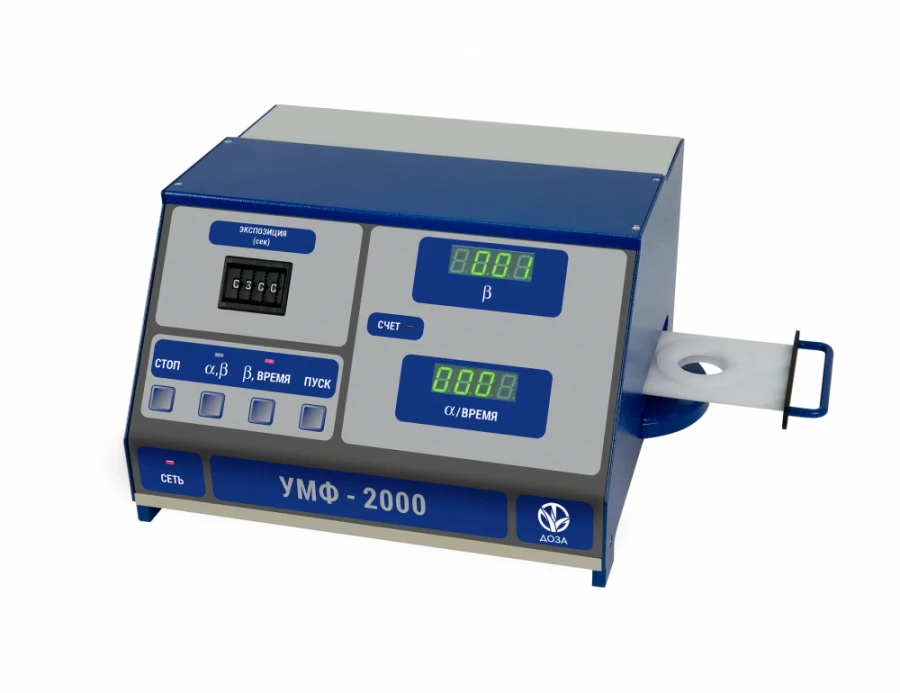

Alpha-beta radiometer for measurement of small activities UMF-2000

Radiometric Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Low background alpha-beta radiometer with silicon detector, widely used for low activity measurements. It is recommended for measuring the total alpha and beta activity of natural and drinking water, as well as for measuring the activity of alpha-emitting radionuclides by spectrometric method.

Purpose:
- measurement of total activity of alpha-emitting nuclides in "thick" and "thin" counting samples of environmental samples;
- measurement of total activity of beta-emitting nuclides in counting samples of soil, water, air filters and samples obtained by methods of selective radiochemical extraction;
- measurement of alpha activity of nuclides in counting samples obtained after radiochemical preparation by radiometric method (if methods are available);
- measurement of alpha activity of nuclides in counting samples obtained after radiochemical preparation by spectrometric method (if methods and spectrometric "UMF-Spectr" set are available).

Specifications

Detector silicon semiconductor

Area of the detector 1) 500 mm2; 2)1000 mm2 mm2

Measured activity range of alpha-emitting nuclides 0,01 ÷ 1000 Bq

Measured activity range of beta-emitting nuclides 0,1 ÷ 3000 Bq

Range of energies of registered alpha radiation 3500 ÷ 10000 keV

Range of energies of registered beta-radiation 50 ÷ 3500 keV

Count rate of background pulses in alpha radiation registration channel (for detector area 500 and 1000 mm2) not more than 0.001 s-1

Background count rate in the beta radiation registration channel for a 500 mm2 detector. not more than 0,03 s-1

Count rate of background pulses in the channel of beta radiation registration for the detector with the area of 1000 mm2 not more than 0,07 s-1

Overall dimensions, weight / version 1 336,5×286×190 mm, 23,0 kg

Overall dimensions, weight / version 2 334×286×190 mm, 22.3kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
