Available for Import

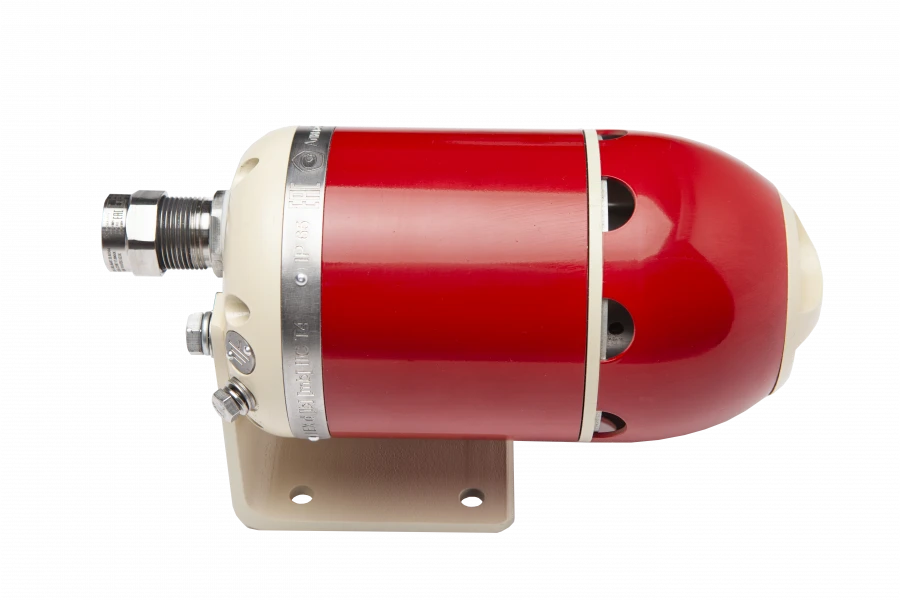

Almaz-Spectr gas analysers
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Gas analysers "ALMAZ-SPECTR" GA-M (hereinafter referred to as gas analysers) are designed to measure pre-explosion hazardous concentrations of methane (mixed with nitrogen) within the range from 0 to 100% NCPR, as well as to transmit measurement information to external devices in analogue and digital form and to issue a control action to the executive device.
Gas analysers are used as part of automated alarm systems or as stand-alone methane gas analysers.
The field of application of gas analysers - explosive zones at industrial facilities, where the occurrence of flammable gases and vapours in the process of operation of process equipment is possible, for example: oil and gas pipelines, compressor stations, etc.; oil platforms, loading racks; gas turbines, gas-transfer units and equipment; enterprises for production and storage of liquefied natural / petroleum gas; petrochemical and thermal power plants; oil and gas boilers and furnaces, boiler houses, etc.; .
Gas analysers are used as part of automated alarm systems or as stand-alone methane gas analysers.
The field of application of gas analysers - explosive zones at industrial facilities, where the occurrence of flammable gases and vapours in the process of operation of process equipment is possible, for example: oil and gas pipelines, compressor stations, etc.; oil platforms, loading racks; gas turbines, gas-transfer units and equipment; enterprises for production and storage of liquefied natural / petroleum gas; petrochemical and thermal power plants; oil and gas boilers and furnaces, boiler houses, etc.; .
Specifications
Weight
5 kg
Controlled gas
Methane CH4
Type
measuring instrument
Equipment
Gas analyser, bracket
Housing material
Aluminum
Operating temperature range
-10...40 °C
Size
225;105;140 mm
Operating temperature range Arctic version
-60...40 °C
Relative humidity at temperature 25C
20 to 90 %
Atmospheric pressure range
84 ÷ 107
Warm-up time
no more than 10
External DC power supply voltage
18...32 V
Power consumption (at 24V voltage), standard version
5
Power consumption (at 24V), Arctic version
15
Service life
10 years
Degree of protection
IP 65
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
