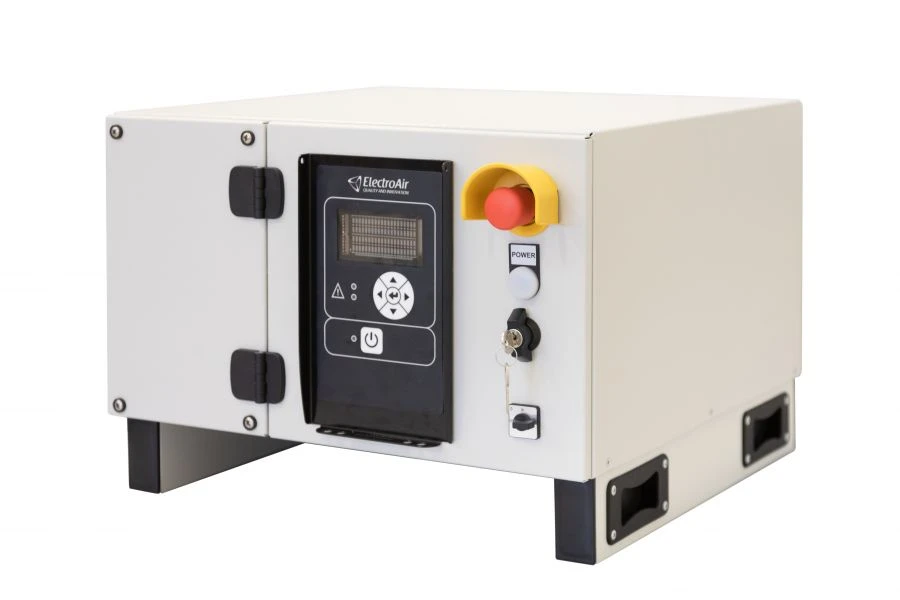

Airfield rectifier EAR-600
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Aerodrome rectifiers of EAR series are designed for ground power supply with constant voltage 28,5V of on-board equipment of aircrafts (aeroplanes, helicopters) of civil and state aviation. They can be used for centralised power supply of workshops and test benches of aviation industry enterprises.
They are manufactured in the following versions: stationary, mobile, small-sized.
Technical characteristics:
Input: - 380V, 50Hz;
Output: - 1 channel DC 28,5V, 600A.
The aerodrome power supplies use a product control system developed on the basis of a modern domestic 32-bit microcontroller. The new control system makes it possible to exclude the possibility of external control and management of foreign technical means of reconnaissance.
They are manufactured in the following versions: stationary, mobile, small-sized.
Technical characteristics:
Input: - 380V, 50Hz;
Output: - 1 channel DC 28,5V, 600A.
The aerodrome power supplies use a product control system developed on the basis of a modern domestic 32-bit microcontroller. The new control system makes it possible to exclude the possibility of external control and management of foreign technical means of reconnaissance.
Specifications
Degree of protection (IP)
54
Overload 600 s
1200 A
Rated output voltage
28.5 V
Number of outputs
1 pc
Rated output current
600 A
Output voltage stabilization accuracy
±0.5 V
Output voltage ripple factor
?2 %
Efficiency in nominal mode, not less
97 %
Overload 50 s
1800 A
Overload 2s
2400 A
Input voltage
3x400 ±10%; pe V
Input frequency
50/60 ±5%
Inrush current
soft start
Overall dimensions (DxWxH)
616x550x392 mm
Weight
60 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
