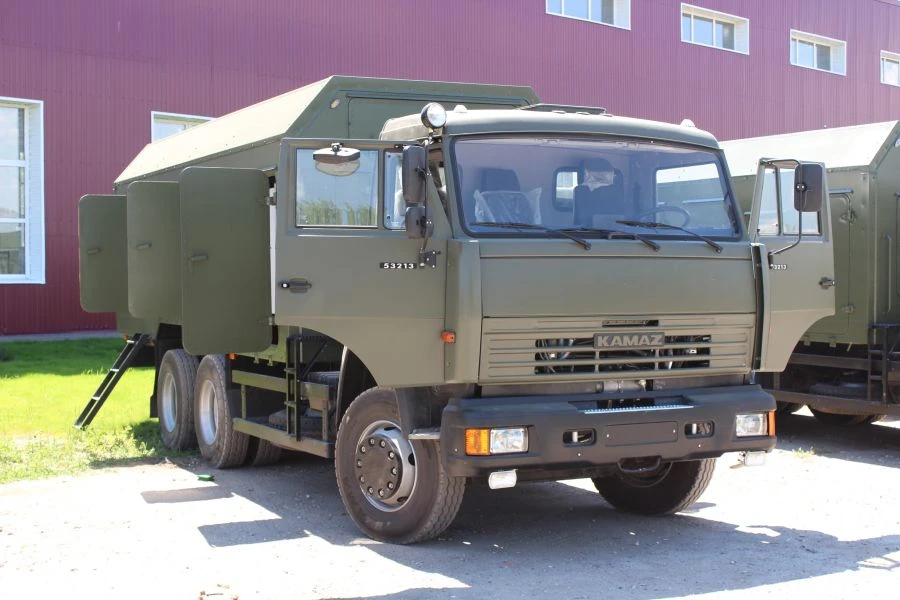

AIRFIELD AIR CONDITIONER AC-0,4-M2

Aerodrome air conditioner AK-04M1 is designed for cooling or heating with conditioned air of high-altitude equipment of flight personnel, aircraft cabins, creating the required conditions in the compartments of special equipment of aircraft when checking the systems in ground conditions when the onboard air conditioning system of the aircraft is not working.

BASIC TECHNICAL DATA
Mass air supply to the aircraft, kg/s (kg/hour)from 0.2 (750) to 0.7 (2500)
Nominal excess (static) pressure of supplied air, kgf/cm:
(at mass supply of 750 kg/h) - up to 0.25
(at mass feeding of 2500 kg/h)- from 0.35
Limits of set values of the supplied air temperature, °?:
"Cooling" mode - from +10 to +15
Heating" mode - from +70 to +90
Power supplied to the aircraft for air conditioning, kW:
for "cold" - up to 50
for "heat" - up to 90
