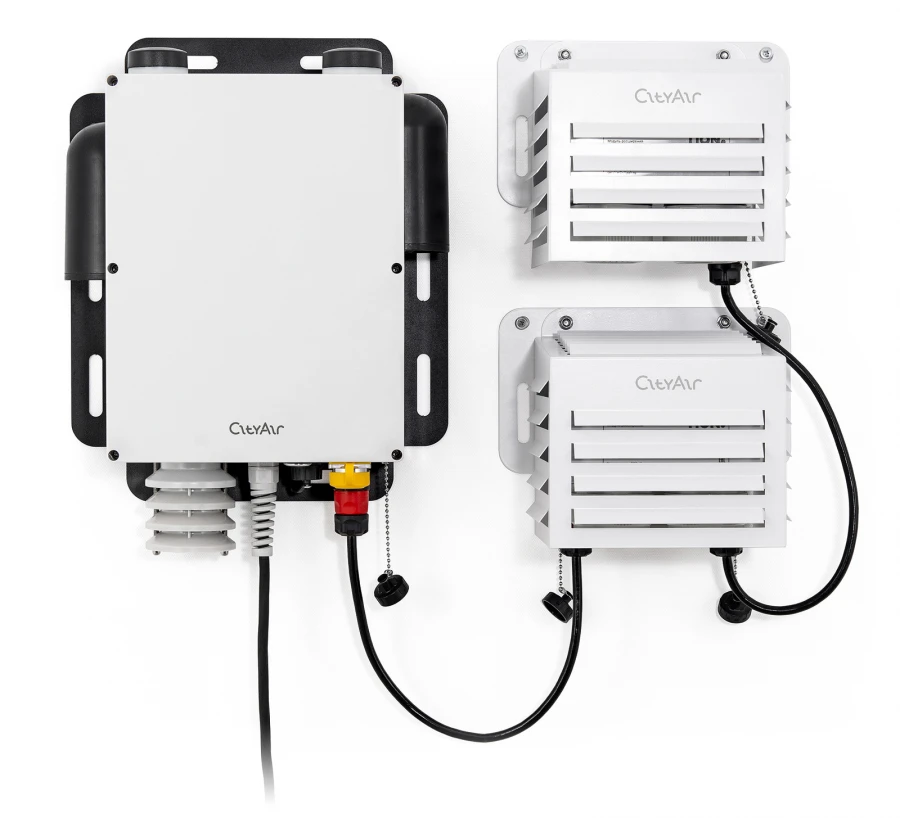

Air Quality Monitoring System CITYAIR Software-Hardware Complex

Available for Import

CITYAIR Air Quality Monitoring System for Real-time Air Quality Measurement

Versatile Computing Machines

Manufacturer: CITYAIR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

PAK CityAir air quality monitoring systems are designed to measure parameters characterising the quality of atmospheric air at the measurement point (mass concentration of dust (PM2.5, PM10), air temperature, relative humidity, atmospheric pressure, speed and direction of air flow, intensity of atmospheric precipitation, to measure the concentration of gases in the atmosphere: CO, NO2, O3, SO2, H2S, etc.), and transfer of measurement information to the server of information processing, its display in the form of analytical reports and data storage.

Specifications

Operating conditions, Relative air humidity

0...98 %

Operating conditions, air temperature

-40...50 °C

Limits of permissible reduced basic error (nitrogen dioxide NO2 in the range from 0 to 0.10 mg/m3 incl.; ozone O3 in the range f

20 %

Reading range Sulphur dioxide, SO2

0 - 8.00 mg/m3

Reading range Hydrogen sulphide, H2S

0 - 2,000 mg/m3

Carbon monoxide reading range, CO

0 - 55.00 mg/m3

Reading range ozone, O3

0 - 4.00 mg/m3

Nitrogen dioxide, NO2 reading range

0 - 5.00 mg/m3

Reading range, suspended particles PM10

0 to 3,0 mg/m3

Tolerance limits of relative error of dust mass concentration measurements

±50 % %

Measuring range of dust mass concentration

0.01 to 1 mg/m3

Dust mass concentration reading range

0 to 6 mg/m3

Reading range, PM2.5 suspended particles

0 to 1.6 mg/m3

Limits of permissible relative error, (nitrogen dioxide NO2 in the range from 0.10 to 4.0 mg/m3; ozone O3 in the range from 0 to

20 %

Limits of permissible reduced error, (hydrogen sulphide H2S in the range from 0 to 0,008 mg/m3 incl.; sulphur dioxide SO2 in the

20 %

Relative error limits, (hydrogen sulphide H2S in the range from 0.008 to 0.600 mg/m3; sulphur dioxide SO2 in the range from 0.00

20 %

Weight of PAK assembly

17 kg

Number of measuring channels in dust meter

2 pcs

Built-in air sample heating for condensate elimination in dust meter

availability

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
