Available for Import
Air head DU80 VMTS.541032.011-05
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

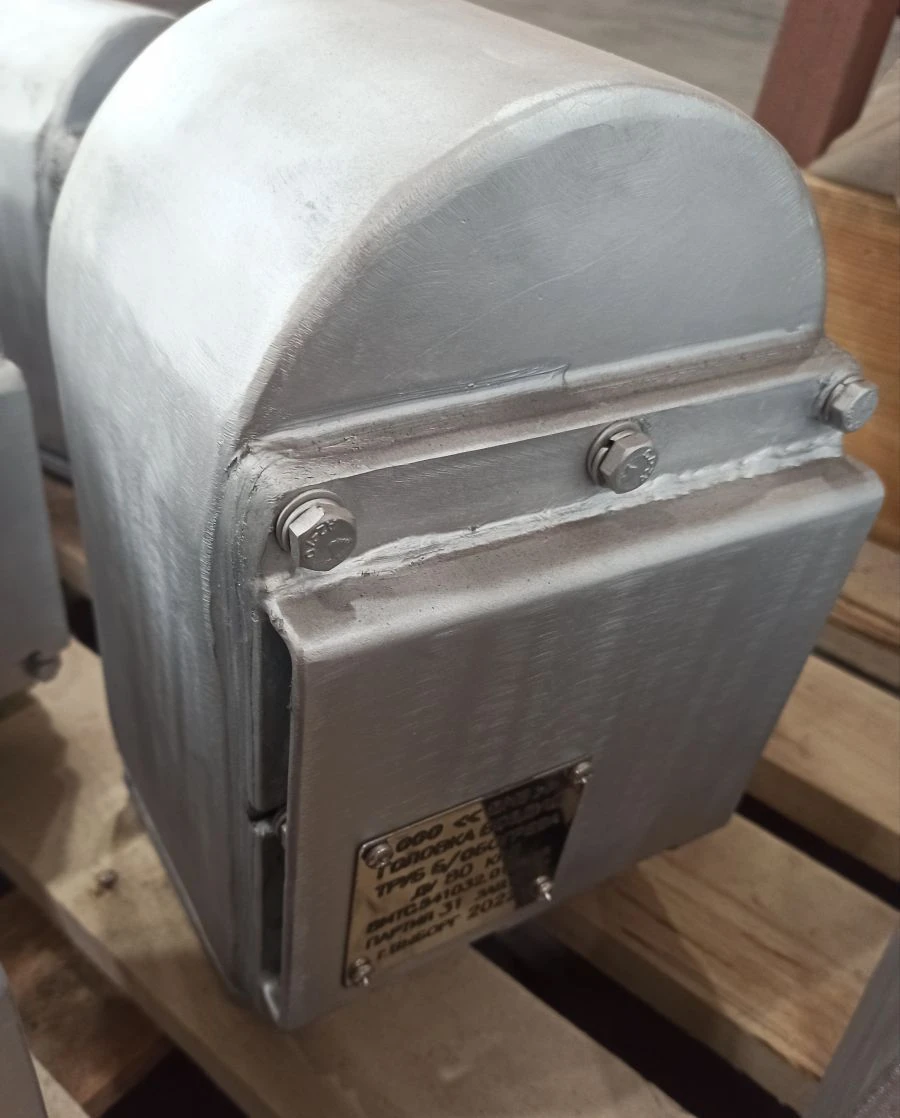

Head of air pipes without heating with flame arresting net and non-metallic float.
Designed for installation on ships, ships and other watercraft.
Material - steel.
Dimensions (in mm) 188x170x290.
Weight - 16,8 kg.
Coating - hot zinc.
Operating temperature is not lower than - 35 degrees Celsius.
Heads of air pipes (automatically acting closing of pipes), having a spherical non-metallic float and semi-tompak flame-extinguishing grid, are installed on air pipes of closed water and/or oil tanks (tanks), as well as on tanks of consumable and reserve fuel. The delivery set includes an air head, a mating flange with a seal and fasteners. The air head is self-drying, has a reliable fastening and provides prevention of free ingress of water, as well as free flow of air or liquid to prevent the formation of overpressure or vacuum in tanks.
Designed for installation on ships, ships and other watercraft.
Material - steel.
Dimensions (in mm) 188x170x290.
Weight - 16,8 kg.
Coating - hot zinc.
Operating temperature is not lower than - 35 degrees Celsius.
Heads of air pipes (automatically acting closing of pipes), having a spherical non-metallic float and semi-tompak flame-extinguishing grid, are installed on air pipes of closed water and/or oil tanks (tanks), as well as on tanks of consumable and reserve fuel. The delivery set includes an air head, a mating flange with a seal and fasteners. The air head is self-drying, has a reliable fastening and provides prevention of free ingress of water, as well as free flow of air or liquid to prevent the formation of overpressure or vacuum in tanks.
Specifications
Conditional DU
80 mm
Float ball diameter
100 mm
Relative humidity of ambient air
100 %
Weight
16.8 kg
Operating temperature range
-40...35 °C
